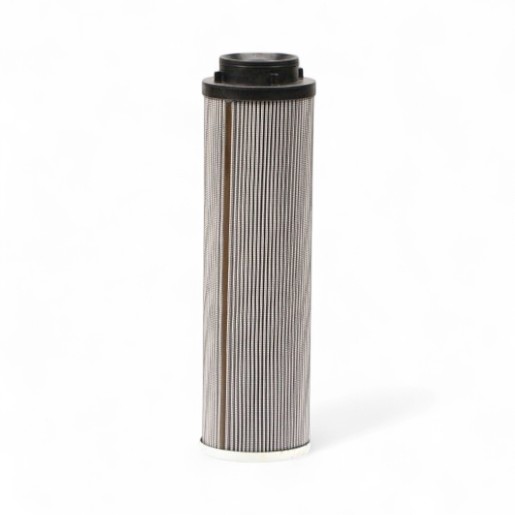

FILTREC replacement filter element for SF-Filter HY9236
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 9236 - quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 10µm filter fineness, VITON seal and max. 10 bar differential pressure is the high-quality alternative to the SF filter HY 9236. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 10 bar |
| Outer diameter (mm) | 90 |
| Height (mm) | 325.5 |
| Inner diameter top (mm) | 63,2 |
| Inner diameter bottom (mm) | 52 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß10=200 / ß12=1000 |
| Seal material | VITON |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 90 mm |
| B | 52 mm |
| C | 632 |
| D | 3255 |
| E | 315 |
| F | 105 mm |
