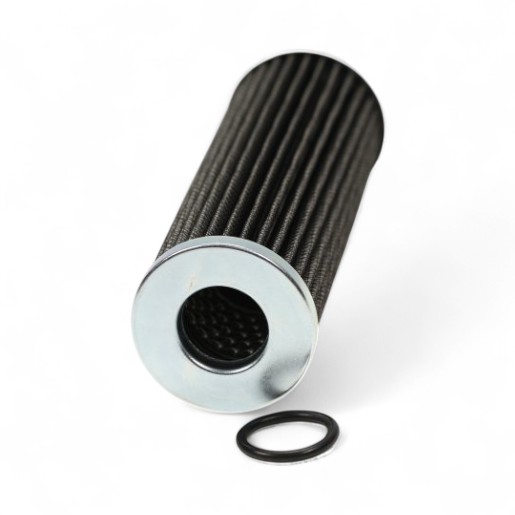

FILTREC replacement filter element for SF-Filter HY14077
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 14077 - quality from Italy
This FILTREC replacement filter element with stainless steel wire mesh filter medium, 40 µm filter fineness, NBR seal and max. 16 bar differential pressure is the high-quality alternative to the SF filter HY 14077. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 16 bar |
| Outer diameter (mm) | 55,00 |
| Height (mm) | 167 |
| Inner diameter (mm) | 26 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 40 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 55 mm |
| B | 26 mm |
| C | 167 |
