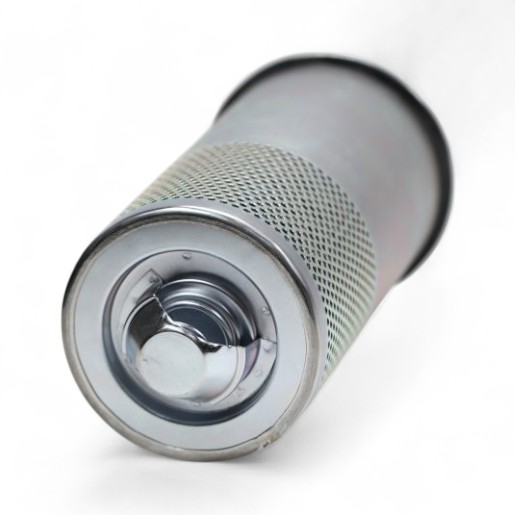

FILTREC replacement filter element for SF-Filter HY9114
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 9114 - quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 12µm filter fineness and NBR seal is the high-quality alternative to the SF filter HY 9114. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Height (mm) | 288 |
| Inner diameter (mm) | 80 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß12=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 136.5 mm |
| B | 80 mm |
| C | 149 |
| D | 24 mm |
| E | 288 |
| F | 28 |
