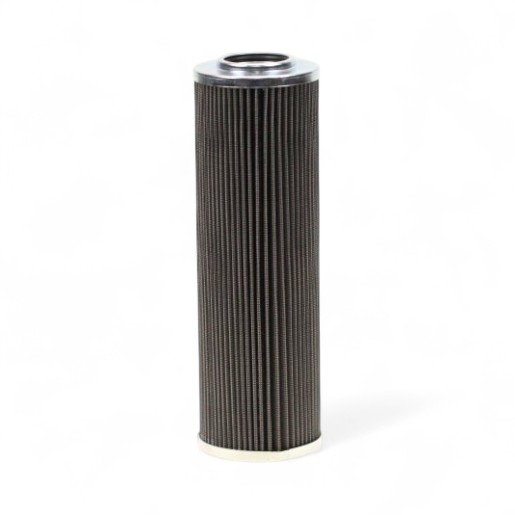

FILTREC replacement filter element for SF-Filter HY15806V
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 15806V - quality from Italy
This FILTREC replacement filter element with stainless steel wire mesh filter medium, 25 µm filter fineness, VITON seal and max. 21 bar differential pressure is the high-quality alternative to the SF filter HY 15806V. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 21 |
| Outer diameter (mm) | 78 |
| Height (mm) | 157 |
| Inner diameter (mm) | 40.5 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 25 |
| Seal material | VITON |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| D1 | 78 mm |
| D2 (mm) | 40.5 |
| H1 | 157 |
