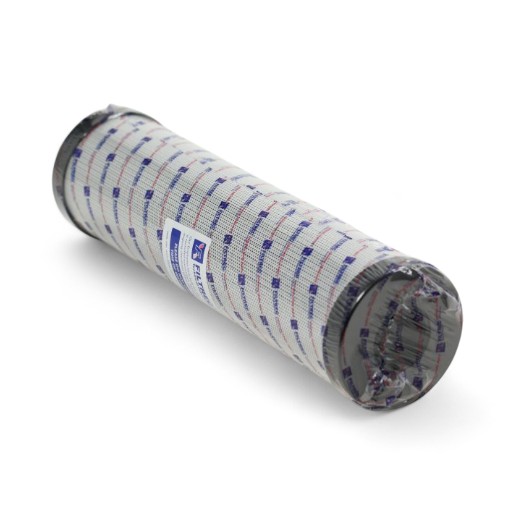

FILTREC replacement filter element for SF-Filter HY13477
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 13477 - quality from Italy
This FILTREC replacement filter element with polyester filter medium, 17 µm filter fineness, NBR seal and max. 10 bar differential pressure is the high-quality alternative to the SF filter HY 13477. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 10 bar |
| Outer diameter (mm) | 88 |
| Height (mm) | 328 |
| Inner diameter (mm) | 40.2 |
| Filter material | Synthetic polyester |
| Filter fineness c (micrometer) | ß17=200 / ß21=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 88 mm |
| B | 40.2 |
| C | 402 |
| D | 328 |
