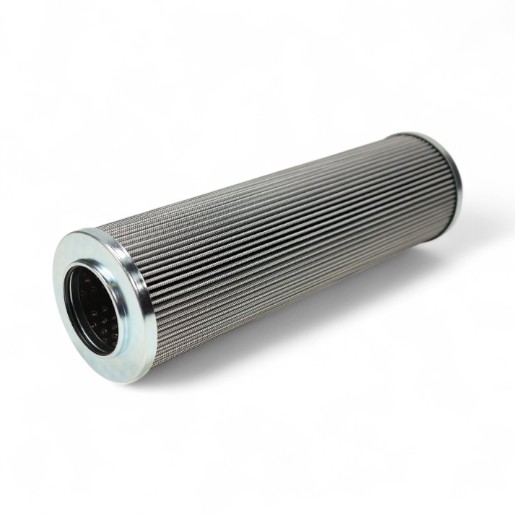

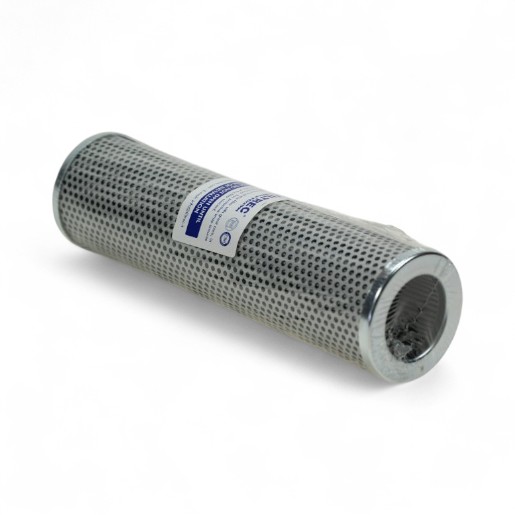

FILTREC replacement filter element for SF-Filter DH090F
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter DH 090F - quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 27µm filter fineness and max. 10 bar differential pressure is the high-quality alternative to the SF filter DH 090F. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 10 bar |
| Outer diameter (mm) | 72 |
| Height (mm) | 260 |
| Inner diameter (mm) | 45 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß27=1000 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 72 mm |
| B | 45 mm |
| C | 83 mm |
| D | 260 |
