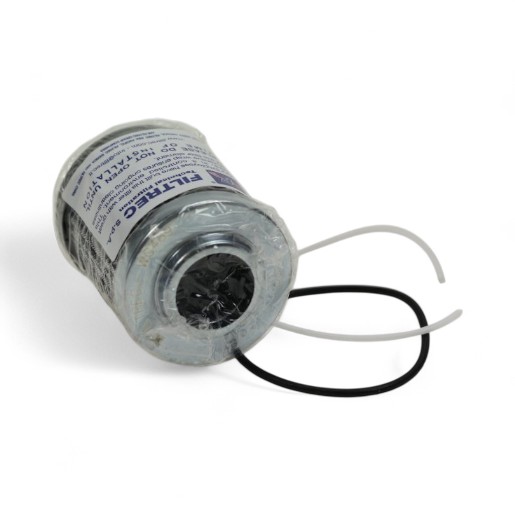

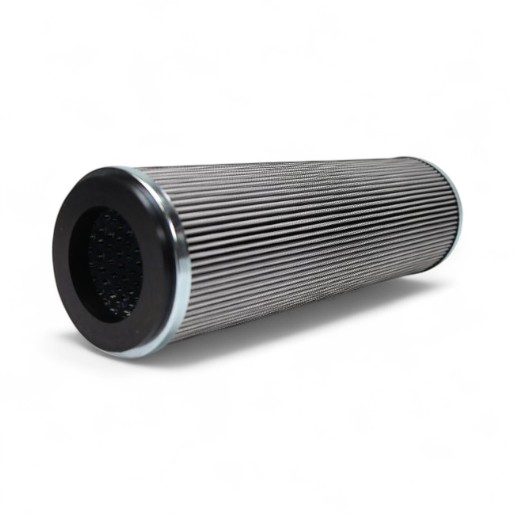

FILTREC replacement filter element for SF-Filter HY90204
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 90204 - quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 12 µm filter fineness and max. 30 bar differential pressure is the high-quality alternative to the SF filter HY 90204. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 30 |
| Outer diameter (mm) | 102 |
| Height (mm) | 333 |
| Inner diameter (mm) | 62 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß12=1000 |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |

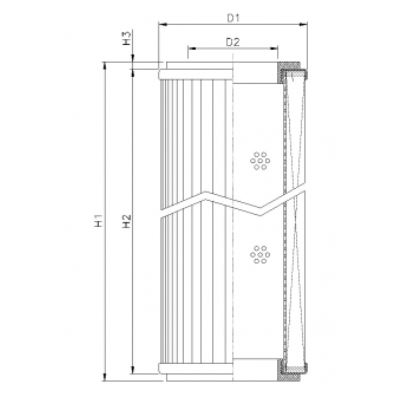

| D1 | 102 |
| D2 (mm) | 62 |
| H1 | 333 |
| H2 | 322 |
| H3 | 5 |
