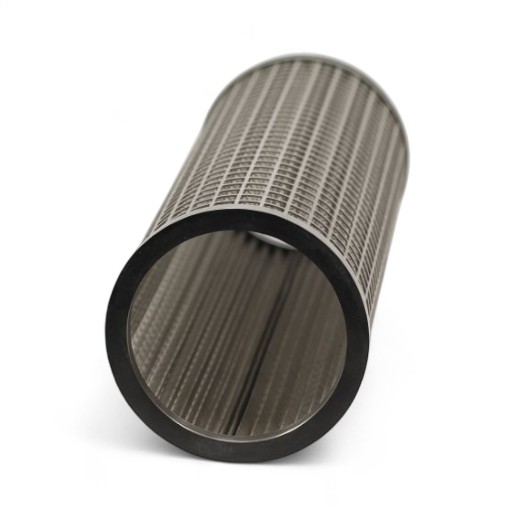

FILTREC replacement filter element for SF-Filter HY25094
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 25094 - quality from Italy
This FILTREC replacement filter element with stainless steel wire mesh filter medium, 300 µm filter fineness and NBR seal is the high-quality alternative to the SF filter HY 25094. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Innen nach aufßen |
| Outer diameter (mm) | 126 |
| Height (mm) | 377 |
| Inner diameter (mm) | 104 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 300 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |

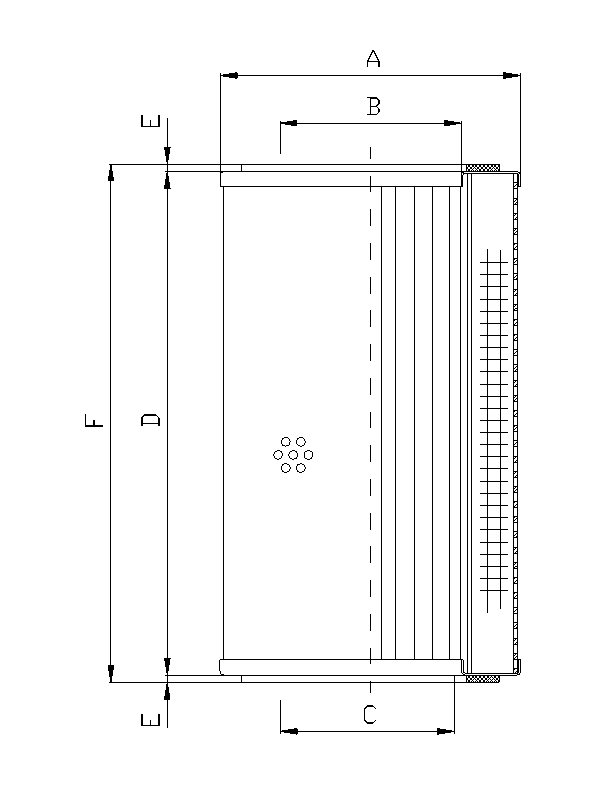

| A | 126 mm |
| B | 104 mm |
| C | 104 mm |
| D | 375 |
| E | 1 |
| F | 377 |
