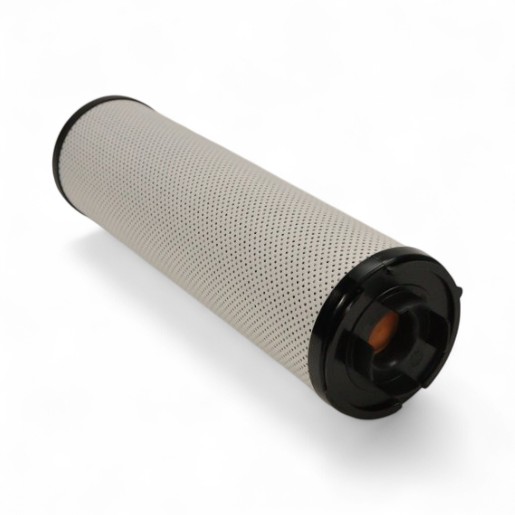

FILTREC replacement filter element for Hydac 0850R010MM
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 0850 R 010 MM - Quality from Italy
This FILTREC replacement filter element with plastic filter medium, 15 µm filter fineness, NBR seal and max. 20 bar differential pressure is the high-quality alternative to the Hydac 0850 R 010 MM. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 20 |
| Outer diameter (mm) | 114 |
| Height (mm) | 412 |
| Height 1 (mm) | 393,5 |
| Height 2 (mm) | 18,5 |
| Inner diameter top (mm) | 65,5 |
| Inner diameter bottom (mm) | 68,5 |
| Filter material | Plastic |
| Filter fineness c (micrometer) | ß15=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| D1 | 114 |
| D2 (mm) | 685 |
| D3 (mm) | 655 |
| H1 | 412 |
| H2 | 3935 |
| H3 | 18 |
