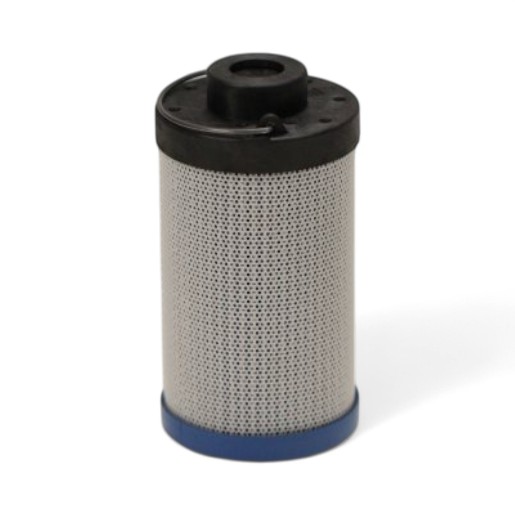

FILTREC replacement filter element for Hydac 0160R003BN3HC
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 0160 R 003 BN3HC - Quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 4µm filter fineness and max. 20 bar differential pressure is the high-quality alternative to the Hydac 0160 R 003 BN3HC. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 20 |
| Outer diameter (mm) | 73,50 |
| Height (mm) | 144 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | >ß4=200 |
| Filter fineness c (micrometer) | ß5=1000 |
| A | 73.5 |
| B | 36 mm |
| C | 342 |
| D | 130 mm |
| E | 135 |
| F | 144 |
