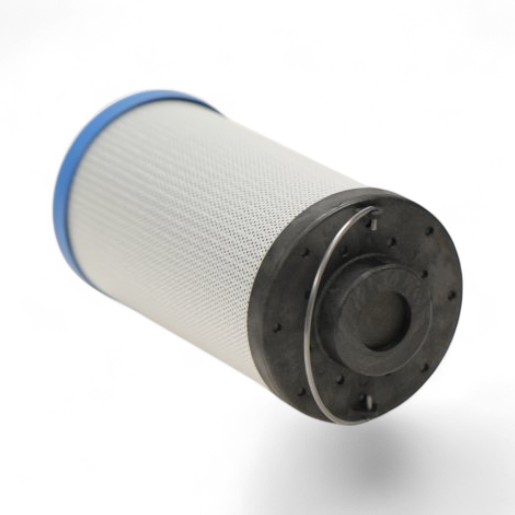

FILTREC replacement filter element for Hydac 0330R020ONV
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 0330 R 020 ONV - Quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 22µm filter fineness, VITON seal and max. 20 bar differential pressure is the high-quality alternative to the Hydac 0330 R 020 ONV. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 20 |
| Outer diameter (mm) | 94.5 |
| Height (mm) | 194 |
| Inner diameter top (mm) | 45,8 |
| Inner diameter bottom (mm) | 48,2 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß22=1000 |
| Filter fineness c (micrometer) | ß20=200 |
| Seal material | VITON |
| Zul. Dauereinsatztemperatur | -25°C to +100°C |
| A | 94.5 |
| B | 45.8 mm |
| C | 482 |
| D | 180 |
| E | 14 mm |
| F | 194 |
