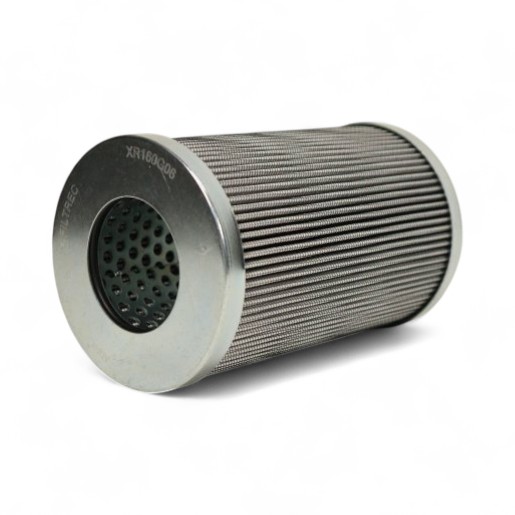

FILTREC replacement filter element for Hydac 0160RN006BN4HC
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 0160RN006BN4HC - Quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 7µm filter fineness, NBR seal and max. 10 bar differential pressure is the high-quality alternative to the Hydac 0160RN006BN4HC. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 10 bar |
| Outer diameter (mm) | 100 |
| Height (mm) | 158 |
| Inner diameter (mm) | 525 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß7=1000 |
| Filter fineness c (micrometer) | ß5=200 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 100 mm |
| B | 52.5 mm |
| C | 525 |
| D | 158 mm |
