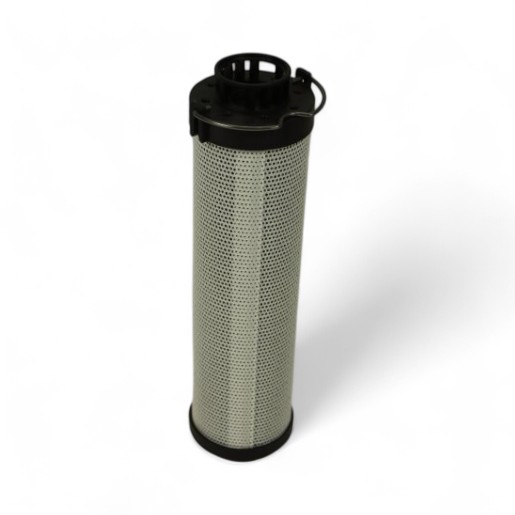

FILTREC replacement filter element for Hydac 0165R003BN4HCQPG4
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 0165 R 003 BN4HCQPG4 - Quality made in Italy
This FILTREC replacement filter element with glass fiber filter medium, 4µm filter fineness, NBR seal and max. 20 bar differential pressure is the high-quality alternative to the Hydac 0165 R 003 BN4HCQPG4. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 20 |
| Outer diameter (mm) | 60,00 |
| Height (mm) | 235 |
| Inner diameter top (mm) | 32,2 |
| Inner diameter bottom (mm) | 32 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß4=200 / ß5=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +120°C |
| D1 | 60 |
| D2 (mm) | 32 |
| D3 (mm) | 322 |
| H1 | 235 |
