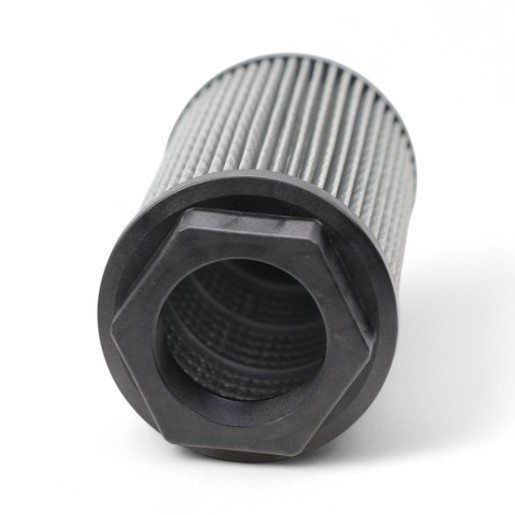

FILTREC suction filter (screw-on element) FS186B9T125B
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

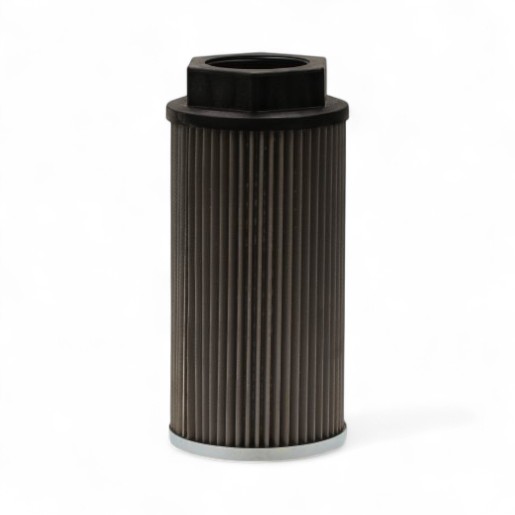

FILTREC suction filter FS186B9T125B - stainless steel wire mesh, 125µm
The FILTREC filter element for suction filter FS186B9T125B with stainless steel wire mesh filter medium, 125 µm filter fineness, NBR seal and max. 1 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 1 |
| Outer diameter (mm) | 131 |
| Height (mm) | 279 |
| Connection thread | 2 1/2"-11 BSP |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 125 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to 100°C |
| A | 2 1/2"-11 BSP |
| B | 131 mm |
| C | 279 |
| D | 98 mm |
| E | 9 mm |
