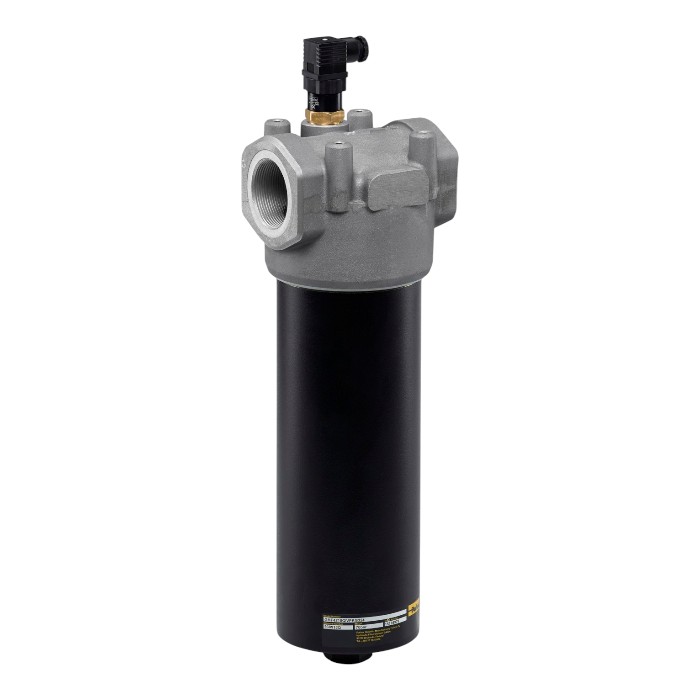

Parker medium pressure hydraulic oil line filter GMF2110QIBM3KG161
As a global leader, Parker offers a comprehensive technology portfolio for filtration, separation, cooling and adsorption in compressed air and gas treatment
Parker Medium-pressure hydraulic oil line filter GMF2110QIBM3KG161, GMF series (iProtect) (0 to 55 l/min, G1, 10 µm)
Inline filter from the Parker GMF series for the medium pressure circuit up to 70 bar.
Data for this variant: 0 to 55 l/min; connection G1; 10 µm. Further key data: Filter medium 10QI (Quantumfiber™); Bypass 3.5 bar; Indicator Visual indicator; Seal nitrile; Standard option.
Full-flow or bypass installation in hydraulic power units and machine tools.
| Flow rate (l/min) | 0 bis 55 |
| Filter element | 10QI (Quantumfiber™) |
| Connection type | G1 |
| Options | Standard |
| Bypass valve Pressure range (bar) | 3,5 |
| Filter fineness (micrometres) | 10 |
| Indicator type | Visual indicator |
| Seal material | Nitril |
