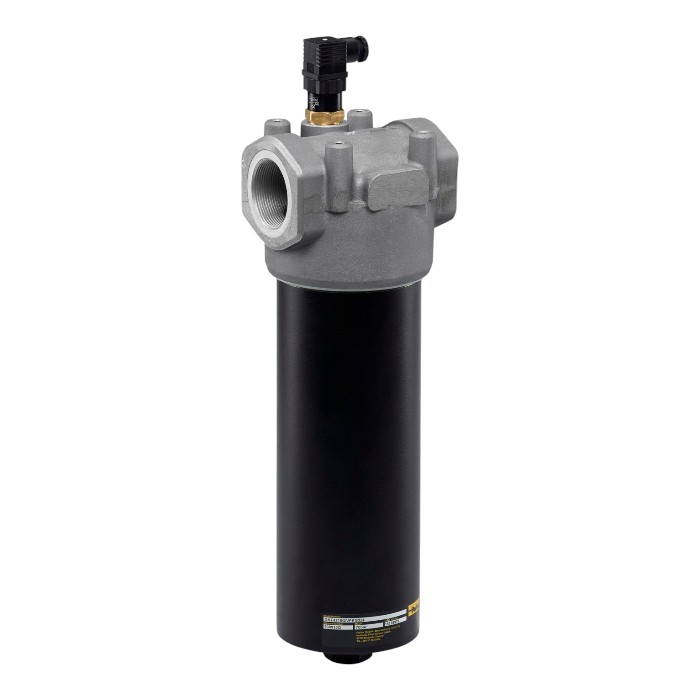

Parker medium pressure hydraulic oil line filter GMF2110QIBPMG121
As a global leader, Parker offers a comprehensive technology portfolio for filtration, separation, cooling and adsorption in compressed air and gas treatment
Parker Medium-pressure hydraulic oil line filter GMF2110QIBPMG121, GMF series (iProtect) (0 to 55 l/min, G¾, 10 µm)
Inline filter from the Parker GMF series for the medium pressure circuit up to 70 bar.
Data for this variant: 0 to 55 l/min; connection G¾; 10 µm. Further key data: Filter medium 10QI (Quantumfiber™); bypass 6 bar; indicator closed with steel plug; nitrile seal; standard option.
Full-flow or bypass installation in hydraulic power units and machine tools.
| Flow rate (l/min) | 0 bis 55 |
| Filter element | 10QI (Quantumfiber™) |
| Connection type | G¾ |
| Options | Standard |
| Bypass valve Pressure range (bar) | 6 |
| Filter fineness (micrometres) | 10 |
| Indicator type | Plugged with steel plug |
| Seal material | Nitril |
