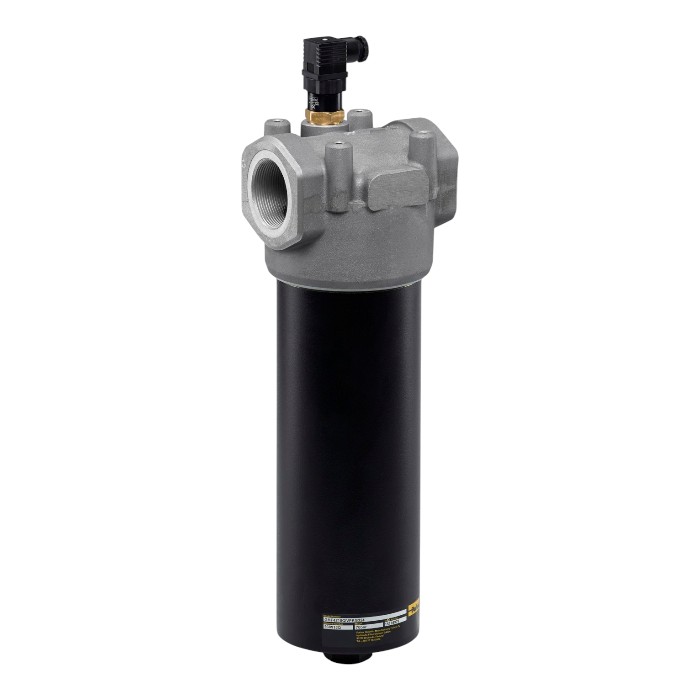

Parker medium pressure hydraulic oil line filter GMF3202QIVM3GG244
As a global leader, Parker offers a comprehensive technology portfolio for filtration, separation, cooling and adsorption in compressed air and gas treatment
Parker Medium-pressure hydraulic oil line filter GMF3202QIVM3GG244, GMF series (iProtect) (0 to 150 l/min, G1½, 2 µm)
Inline filter from the Parker GMF series for the medium pressure circuit up to 70 bar.
Data for this variant: 0 to 150 l/min; connection G1½; 2 µm. Further key data: Filter medium 02QI (Quantumfiber™); Bypass 1.7 bar; Indicator Visual indicator; Seal fluoroelastomer; Option standard drain on the bell.
Full-flow or bypass installation in hydraulic power units and machine tools.
| Flow rate (l/min) | 0 to 150 |
| Filter element | 02QI (Quantumfiber™) |
| Connection type | G1½ |
| Options | Standard drain on the bell |
| Bypass valve Pressure range (bar) | 1,7 |
| Filter fineness (micrometres) | 2 |
| Indicator type | Visual indicator |
| Seal material | Fluoroelastomer |
