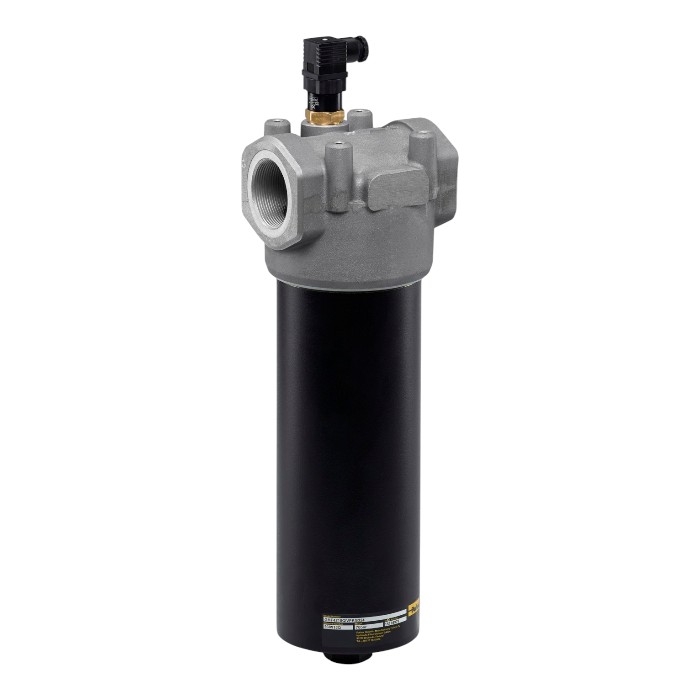

Parker medium pressure hydraulic oil line filter GMF4210QIVT1GR321
As a global leader, Parker offers a comprehensive technology portfolio for filtration, separation, cooling and adsorption in compressed air and gas treatment
Parker Medium-pressure hydraulic oil line filter GMF4210QIVT1GR321, GMF series (iProtect) (0 to 530 l/min, 2" SAE-3000M, 10 µm)
Inline filter from the Parker GMF series for the medium pressure circuit up to 70 bar.
Data for this variant: 0 to 530 l/min; connection 2" SAE-3000M; 10 µm. Further key data: Filter medium 10QI (Quantumfiber™); Bypass 1.7 bar; Indicator Electrical indicator; Seal fluoroelastomer; Standard option.
Full-flow or bypass installation in hydraulic power units and machine tools.
| Flow rate (l/min) | 0 bis 530 |
| Filter element | 10QI (Quantumfiber™) |
| Connection type | 2" SAE-3000M |
| Options | Standard |
| Bypass valve Pressure range (bar) | 1,7 |
| Filter fineness (micrometres) | 10 |
| Indicator type | Electrical indicator |
| Seal material | Fluoroelastomer |
