FILTREC hydraulic filter element H311G15B
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

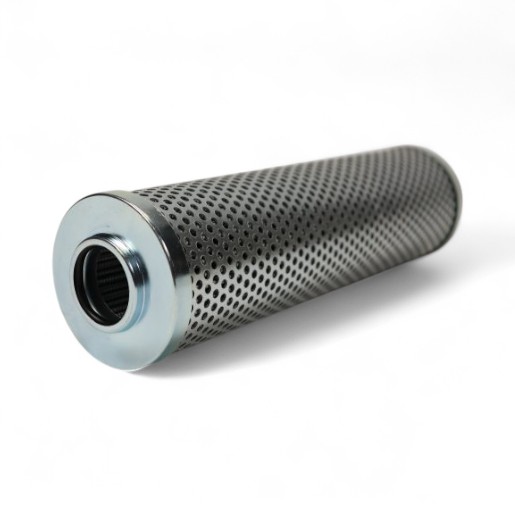

FILTREC filter element H311G15B - glass fiber, 15µm
The FILTREC filter element for filter element H311G15B with glass fiber filter medium, 15µm filter fineness and NBR seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Innen nach aufßen |
| Outer diameter (mm) | 63.7 |
| Height (mm) | 232 |
| Inner diameter (mm) | 28.5 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß15=200 / ß17=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| D1 | 63.7 |
| D2 (mm) | 28.5 |
| H1 | 232 |
