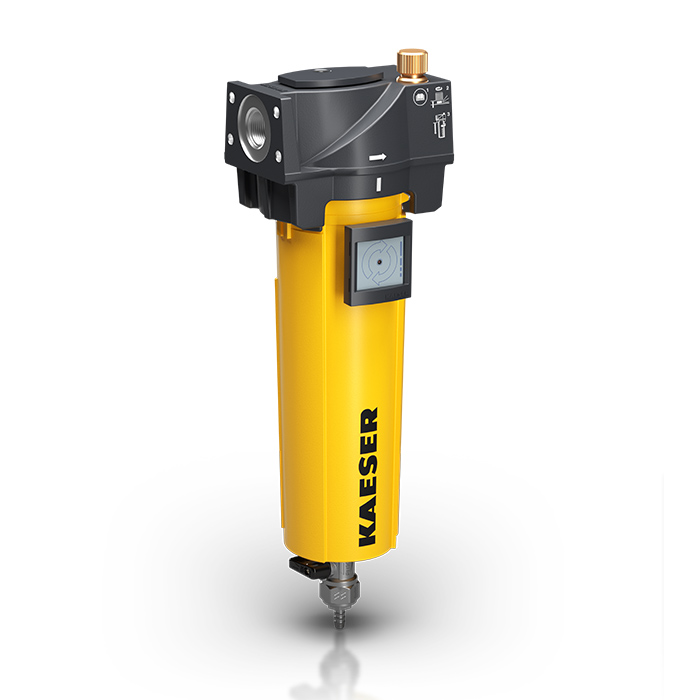

KAESER Filter adsorption model F142KA G 1 1/2"
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
MDM500014785Category :
Compressed Air FiltersWeight :
10.10 kgDelivery area :
DeutschlandDer KAESER Aktivkohlefilter ist optimiert für die effektive Adsorption und Entfernung von Öldämpfen aus Druckluftsystemen. Dieser Filter gewährleistet eine hohe Luftqualität und schützt nachgeschaltete Geräte vor Verunreinigungen.
| Volume flow (m³/min) | 14,20 |
| Compressed air inlet connection | G 1 1/2" |
| Differential pressure in new condition | < 0,03 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Width (mm) | 198 |
| Height (mm) | 725 |
| Depth (mm) | 153 |
| Condensate drain | Ball valve |
| Min. ambient temperature (°C) | +3 |
| Max. Ambient temperature (°C) | +50 |
| Min. inlet temperature compressed air (°C) | +3 |
| Max. Compressed air inlet temperature (°C) | +66 |
| Degree of filtration | KA - Activated carbon filter adsorption |
