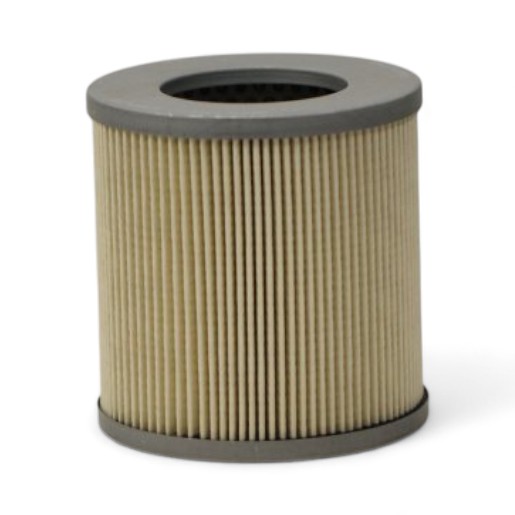

FILTREC hydraulic filter element (suction filter) S160C10
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC suction filter S160C10 - cellulose, 10µm
The FILTREC filter element for suction filter S160C10 with cellulose filter medium, 10 µm filter fineness and max. 5 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 5 |
| Outer diameter (mm) | 136 |
| Height (mm) | 400 |
| Inner diameter (mm) | 75 |
| Filter material | Cellulose |
| Filter fineness c (micrometer) | ß10=2 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| D1 | 136 |
| D2 (mm) | 75 |
| H1 | 140 |
