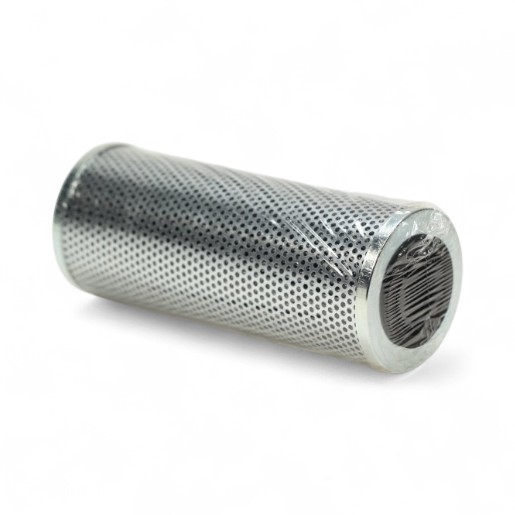

FILTREC filter element for suction filter S4110G06
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC suction filter S4110G06 - glass fiber, 7µm
The FILTREC filter element for suction filter S4110G06 with glass fiber filter medium, 7µm filter fineness and max. 5 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 5 |
| Outer diameter (mm) | 93 |
| Height (mm) | 236 |
| Inner diameter (mm) | 44 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß7=1000 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 93 mm |
| B | 44 mm |
| C | 44 mm |
| D | 230 |
| E | 3 |
| G | 236 |
