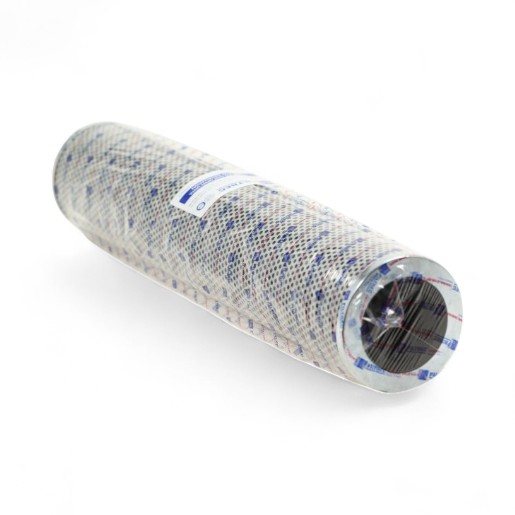

FILTREC hydraulic filter element (suction filter) S4111G10
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC suction filter S4111G10 - glass fiber, 10µm
The FILTREC filter element for suction filter S4111G10 with glass fiber filter medium, 10µm filter fineness, NBR seal and max. 5 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Innen nach aufßen |
| max. differential pressure (bar) | 5 |
| Outer diameter (mm) | 93 |
| Height (mm) | 470 |
| Inner diameter (mm) | 44 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß10=200 / ß12=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| A | 93 mm |
| B | 44 mm |
| C | 44 mm |
| D | 464 |
| E | 3 |
| F | 470 |
