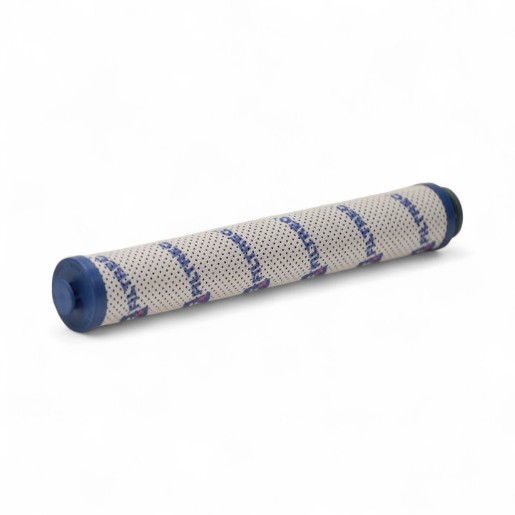

FILTREC hydraulic filter element U122G06V/ESD
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC filter element U122G06V/ESD - glass fiber, 5µm
The FILTREC filter element for filter element U122G06V/ESD with glass fiber filter medium, 5µm filter fineness, FKM seal and max. 10 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Innen nach aufßen |
| max. differential pressure (bar) | 10 bar |
| Outer diameter (mm) | 54 |
| Height (mm) | 367 |
| Inner diameter top (mm) | 25 |
| Inner diameter bottom (mm) | 42,5 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß5=200 / ß7=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 54 mm |
| B | 25 mm |
| C | 425 |
| D | 3435 |
| E | 135 |
| F | 367 |
