FILTREC hydraulic filter element WG257
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

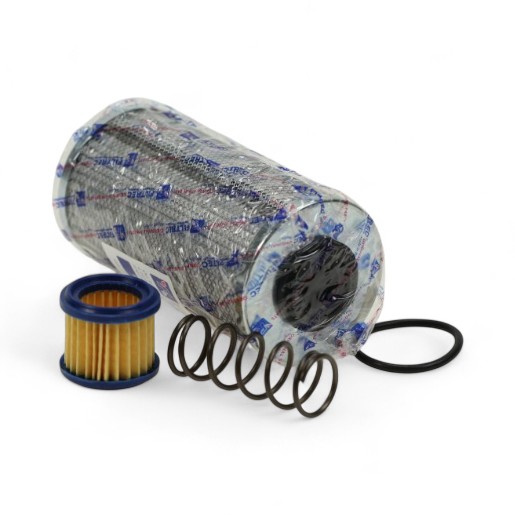

FILTREC filter element WG257 - glass fiber, 12µm
The FILTREC filter element for filter element WG257 with glass fiber filter medium, 12µm filter fineness, NBR seal and max. 5 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 5 |
| Outer diameter (mm) | 70 |
| Height (mm) | 130 |
| Inner diameter (mm) | 41 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß12=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |

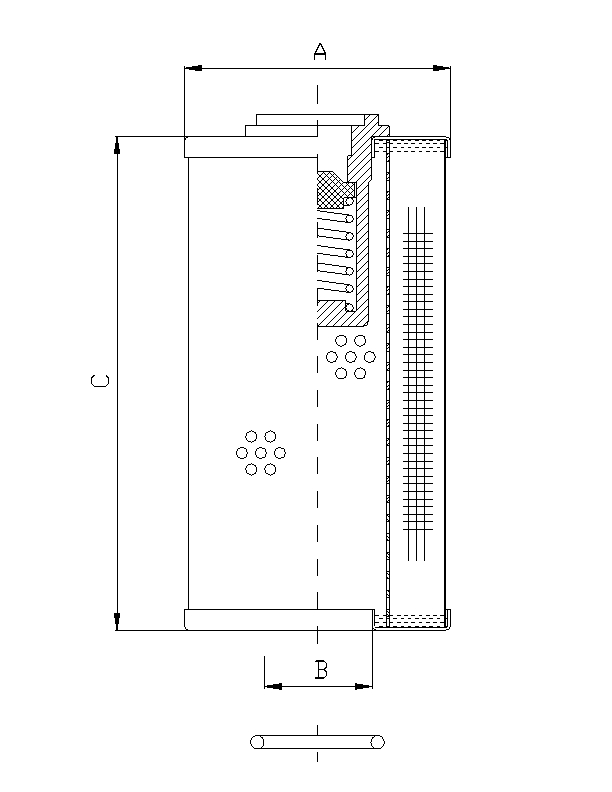

| A | 70 mm |
| B | 41 mm |
| C | 130 mm |
