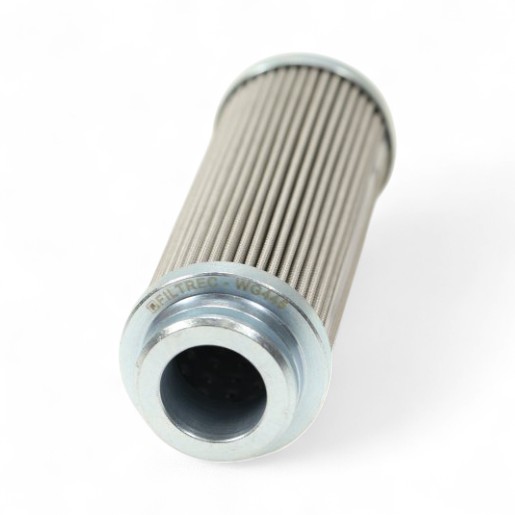

FILTREC hydraulic filter element WG445
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC filter element WG445 - glass fiber, 10µm
The FILTREC filter element for filter element WG445 with glass fiber filter medium and 10µm filter fineness offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| Outer diameter (mm) | 52 |
| Height (mm) | 149 |
| Inner diameter (mm) | 26 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß10=200 / ß12=1000 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| D1 | 52 |
| D2 (mm) | 26 |
| H1 | 149 |
| H2 | 136 |
| H3 | 13 |
