FILTREC hydraulic filter element WT1060
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

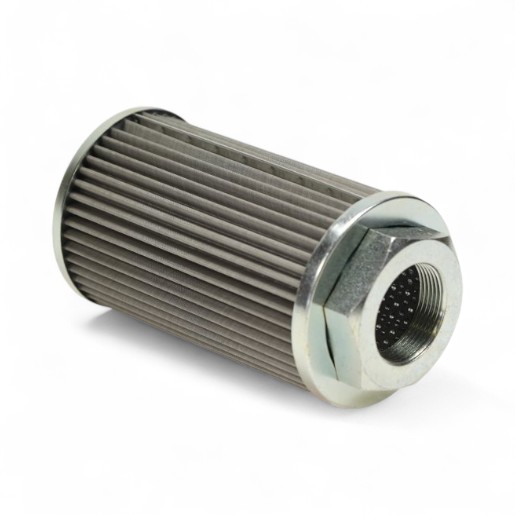

FILTREC filter element WT1060 - stainless steel wire mesh, 100µm
The FILTREC filter element for filter element WT1060 with stainless steel wire mesh filter medium, 100 µm filter fineness and max. 1 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 1 |
| Outer diameter (mm) | 99,6 |
| Height (mm) | 182 |
| Connection thread | 1/2"-11 BSP |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 100 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 99.6 |
| B | 1 1/2"-11 BSP |
| C | 182 mm |
| D | 70 mm |
