FILTREC hydraulic filter element WT1180
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

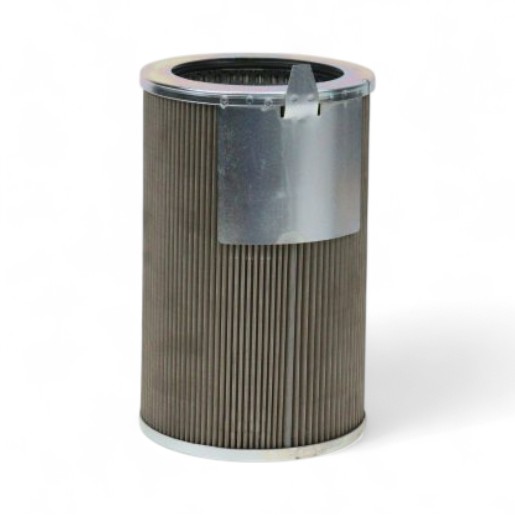

FILTREC filter element WT1180 - stainless steel wire mesh, 150µm
The FILTREC filter element for filter element WT1180 with stainless steel wire mesh filter medium, 150 µm filter fineness and NBR seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Outer diameter (mm) | 139,5 |
| Height (mm) | 219 |
| Inner diameter (mm) | 102.5 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 150 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 139.5 |
| B | 102.5 |
| C | 1025 |
| D | 219 mm |
