FILTREC hydraulic filter element WT1635
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

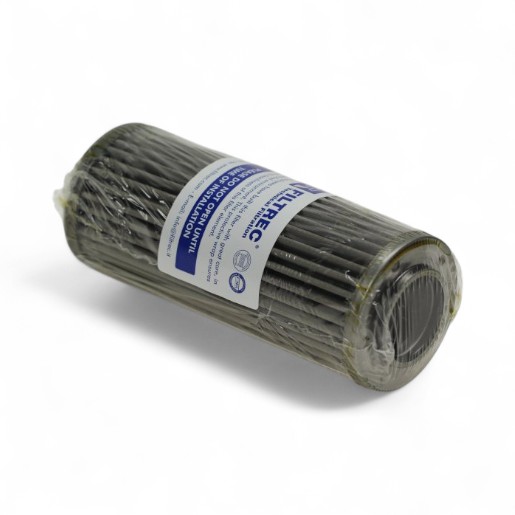

FILTREC filter element WT1635 - stainless steel wire mesh, 50µm
The FILTREC filter element for filter element WT1635 with stainless steel wire mesh filter medium, 50 µm filter fineness, NBR seal and max. 7 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 7 |
| Outer diameter (mm) | 62 |
| Height (mm) | 154 |
| Inner diameter (mm) | 32.2 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 50 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| A | 62 mm |
| B | 32.2 |
| C | 154 |
