FILTREC hydraulic filter element WT1717
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

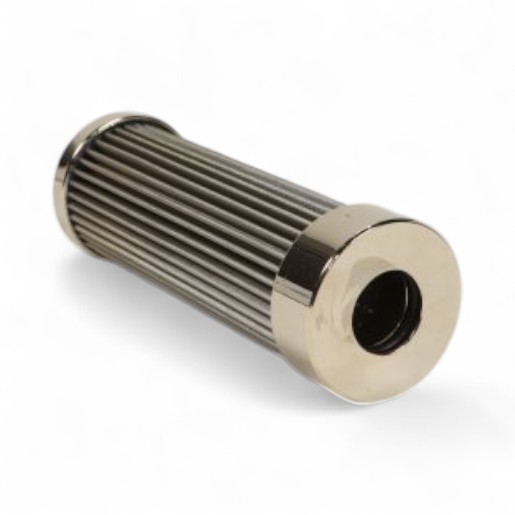

FILTREC filter element WT1717
The FILTREC filter element for filter element WT1717 with NBR seal and max. 210 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 210 |
| Outer diameter (mm) | 40 |
| Height (mm) | 121 |
| Inner diameter (mm) | 18 |
| Efficiency | 60 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30C to +100°C |

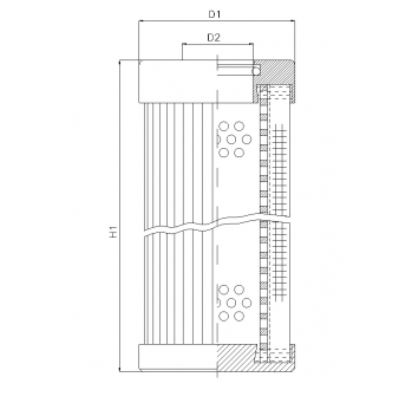

| D1 | 40 mm |
| D2 (mm) | 18 |
| H1 | 121 |
