FILTREC hydraulic filter element WT667
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

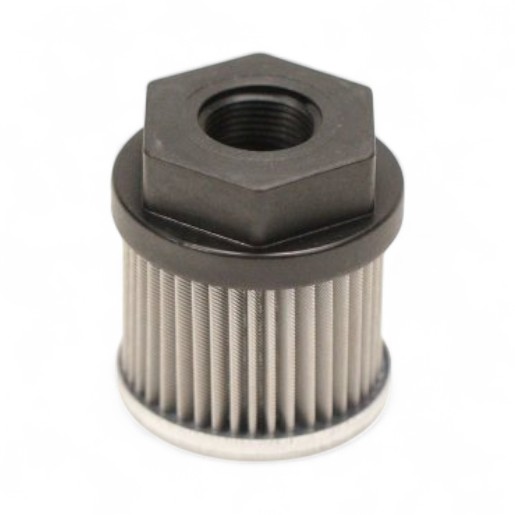

FILTREC filter element WT667 - stainless steel wire mesh, 125µm
The FILTREC filter element for filter element WT667 with stainless steel wire mesh filter medium, 125 µm filter fineness and max. 1 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 1 |
| Outer diameter (mm) | 64,00 |
| Height (mm) | 71 |
| Connection thread | 3/4" NPT |
| Inner diameter (mm) | 50 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 125 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 64.0 |
| B | 50.0 |
| C | 71 mm |
