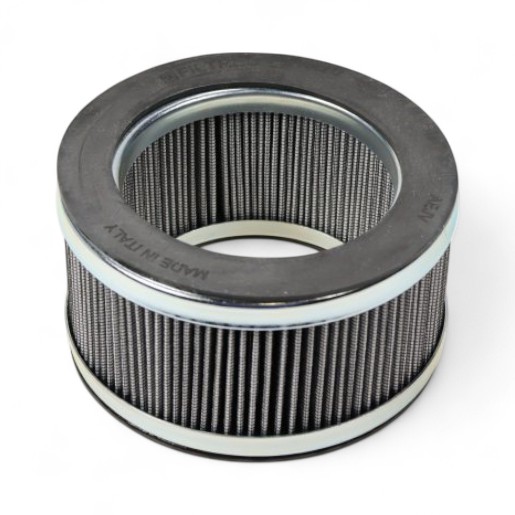

FILTREC air filter element WX470
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC filter element WX470 - glass fiber, 3µm
The FILTREC filter element for filter element WX470 with glass fiber filter medium, 3µm filter fineness, NBR seal and max. 1 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 1 |
| Outer diameter (mm) | 134 |
| Height (mm) | 72 |
| Inner diameter (mm) | 91.5 |
| Filter material | Glass fiber |
| Filter fineness (micrometres) | 3 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| A | 134 |
| B | 91.5 |
| C | 915 |
| D | 68 mm |
| E | 2 |
| F | 72 |
