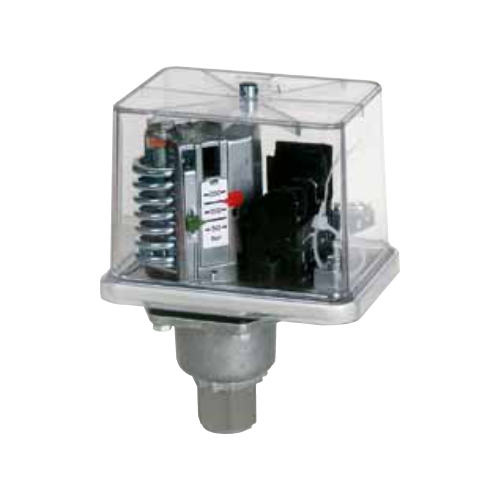

TIVAL Pressure switch FF 4-250 PAH 30 - 250 bar 3/8" stainless steel
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-250 PAH high pressure switch 30 - 250 bar - plastic piston & throttle | Art. 1010072
The TIVAL High pressure switch with plastic piston with throttle combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 30 ... 250, the lower switching point is adjustable from 14 ... 226. Connection: G 3/8" stainless steel - robust design in matching material variant. Application range: High-pressure applications - with proven long-term stability. max. operating pressure: 400 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 30 ... 250 |
| Lower switching point adjustable (bar) | 14 ... 226 |
| small pressure difference (bar) | 12 24 |
| Max. Operating pressure (bar) | 400 |
| Max. Test pressure (bar) | 500 |
| Factory setting (bar) | 100 /200 |
| Pressure connection | G 3/8" stainless steel |
| Model range - Pressure switch | FF 4 / PAH |
Similar Products
| Product | Price | ||
|---|---|---|---|

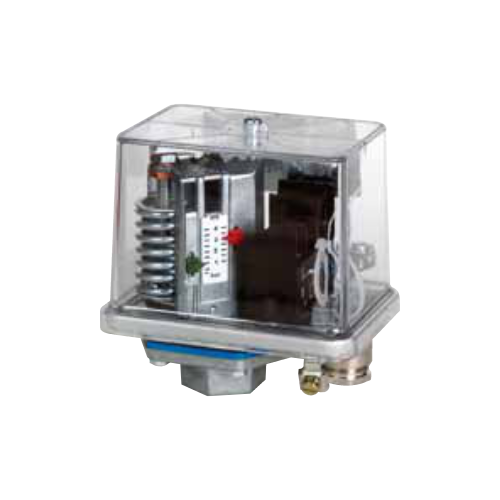

![[1030140] TIVAL pressure switch FF 4-250 AB PAH 30 - 250 bar 3/8" zinc](/web/image/product.template/149339/image_128/%5B1030140%5D%20TIVAL%20pressure%20switch%20FF%204-250%20AB%20PAH%2030%20-%20250%20bar%203-8%22%20zinc?unique=d4441e6)
|
