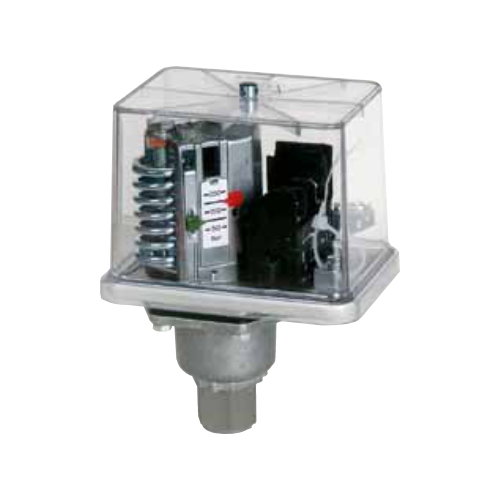

TIVAL Pressure switch FF 4-60 PAH 8-60 bar 3/8" stainless steel
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-60 PAH high pressure switch 8 - 60 bar - plastic piston & throttle | Art. 1010064
The TIVAL High pressure switch with plastic piston with throttle combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 8 ... 60, the lower switching point is adjustable from 4 ... 52. Connection: G 3/8" stainless steel - robust design in matching material variant. Application range: High-pressure applications - with proven long-term stability. max. operating pressure: 100 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 8 ... 60 |
| Lower switching point adjustable (bar) | 4 ... 52 |
| small pressure difference (bar) | 4 8 |
| Max. Operating pressure (bar) | 100 |
| Max. Test pressure (bar) | 120 |
| Factory setting (bar) | 20 / 40 |
| Pressure connection | G 3/8" stainless steel |
| Model range - Pressure switch | FF 4 / PAH |
Similar Products

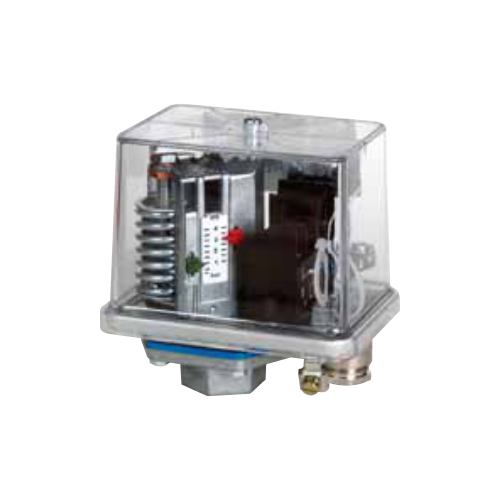

![[1030138] TIVAL Pressure switch FF 4-60 AB PAH 8 - 60 bar 3/8" zinc](/web/image/product.template/149324/image_128/%5B1030138%5D%20TIVAL%20Pressure%20switch%20FF%204-60%20AB%20PAH%208%20-%2060%20bar%203-8%22%20zinc?unique=d4441e6)

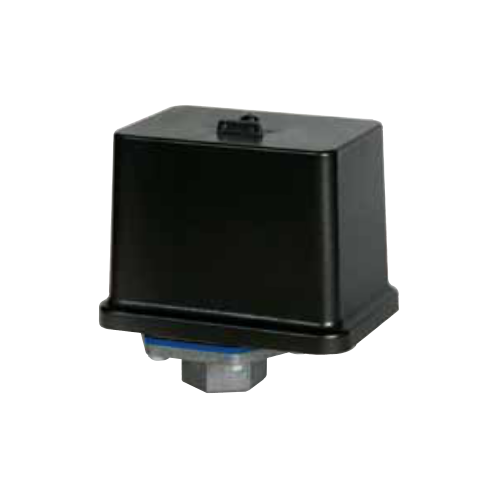

![[1030147] TIVAL Pressure switch FF 4-60 AC PAH 8 - 60 bar 3/8" silumin](/web/image/product.template/149325/image_128/%5B1030147%5D%20TIVAL%20Pressure%20switch%20FF%204-60%20AC%20PAH%208%20-%2060%20bar%203-8%22%20silumin?unique=d4441e6)

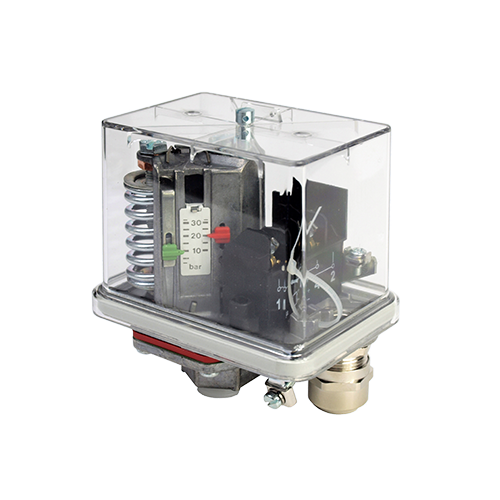

![[1010088] TIVAL Pressure switch FF 4-60 GL PAH 8 - 60 bar 3/8" Silumin](/web/image/product.template/149329/image_128/%5B1010088%5D%20TIVAL%20Pressure%20switch%20FF%204-60%20GL%20PAH%208%20-%2060%20bar%203-8%22%20Silumin?unique=d4441e6)
