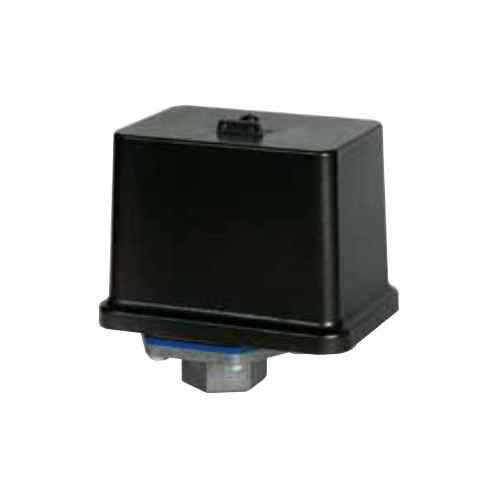

TIVAL Pressure switch FF 4-60 AC PAH 8 - 60 bar 3/8" silumin
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-60 AC PAH ATEX high-pressure switch 8 - 60 bar - Chemical (Ex ia IIC) | Art. 1030147
The TIVAL ATEX high-pressure switch is ATEX-certified in accordance with EN 60079 and offers maximum safety for explosive atmospheres. The upper switching point is adjustable from 8 ... 60, the lower switching point can be set from 4 ... 52. Connection: G 3/8" stainless steel - robust design in matching material variant. Application range: High-pressure chemical & explosive atmospheres - with full conformity documentation. max. operating pressure: 100 bar, medium temperature: up to +70°C. Standards & approvals: ATEX EN 60079, II 2G Ex ia IIC T6 Gb. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 8 ... 60 |
| Lower switching point adjustable (bar) | 4 ... 52 |
| small pressure difference (bar) | 4 8 |
| Max. Operating pressure (bar) | 100 |
| Max. Test pressure (bar) | 120 |
| Factory setting (bar) | 20 / 40 |
| Pressure connection | 3/8" Silumin |
| Model range - Pressure switch | FF 4 / PAH |
