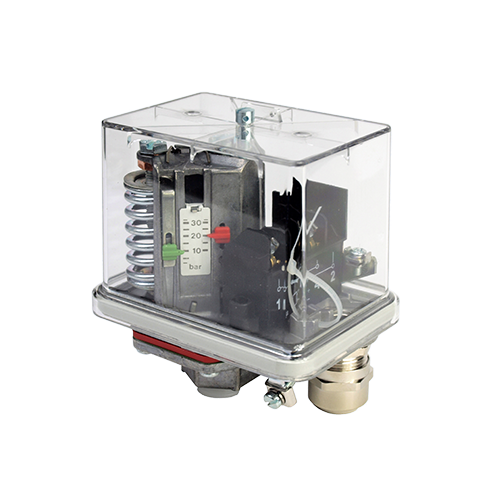

TIVAL Pressure switch FF 4-60 GL PAH 8 - 60 bar 3/8" Silumin
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-60 GL PAH DNV high-pressure switch 8 - 60 bar - Shipbuilding & Offshore | Art. 1010088
The TIVAL High-pressure marine switch is DNV-certified for ships and offshore applications with the highest quality requirements. The upper switching point is adjustable from 8 ... 60, the lower switching point is adjustable from 4 ... 52. Connection: G 3/8" stainless steel - robust design in matching material variant. Application range: High-pressure shipbuilding & offshore - certified for maritime requirements. max. operating pressure: 100 bar, medium temperature: up to +70°C. Standards & approvals: DNV TAA00002G6, VDE 0660, IEC 337-1. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 8 ... 60 |
| Lower switching point adjustable (bar) | 4 ... 52 |
| small pressure difference (bar) | 4 8 |
| Max. Operating pressure (bar) | 100 |
| Max. Test pressure (bar) | 120 |
| Factory setting (bar) | 20 / 40 |
| Pressure connection | G 3/8" Silumin |
| Model range - Pressure switch | FF 4 / PAH |
