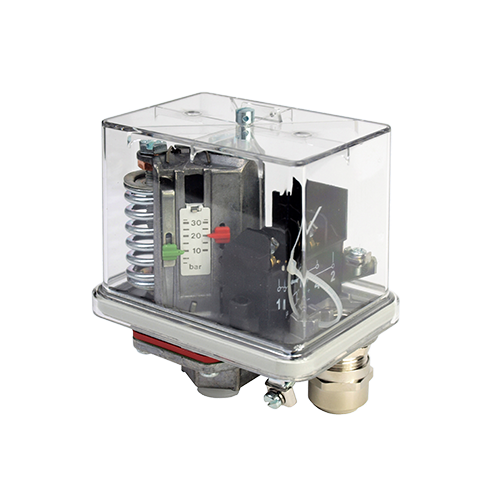

TIVAL Pressure switch FF 4-16 GL DAH 0 - 16 bar 3/8" Silumin
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-16 GL DAH DNV pressure switch 0 - 16 bar - for shipbuilding & offshore | Art. 1010117
The TIVAL Marine switch is DNV-certified for ships and offshore applications with the highest quality requirements. The upper switching point is adjustable from 1 ... 16, the lower switching point is adjustable from 0.4 ... 15. Connection: G 3/8" Silumin - robust design in matching material variant. Application: Shipbuilding & offshore - certified for maritime requirements. max. operating pressure: 36 bar, medium temperature: up to +70°C. Standards & approvals: DNV TAA00002G6, VDE 0660, IEC 337-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 1 ... 16 |
| Lower switching point adjustable (bar) | 0,4 ... 15 |
| small pressure difference (bar) | 0,6 1 |
| Max. Operating pressure (bar) | 36 |
| Max. Test pressure (bar) | 48 |
| Factory setting (bar) | 4 / 12 |
| Pressure connection | G 3/8" Silumin |
| Model range - Pressure switch | FF 4 / GL |
