TIVAL Pressure switch FF 4-16 DAY 1 - 16 bar 3/8" polyamide
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-16 DAY pressure switch 1 - 16 bar - polyamide, for deionized water | Art. 1010082

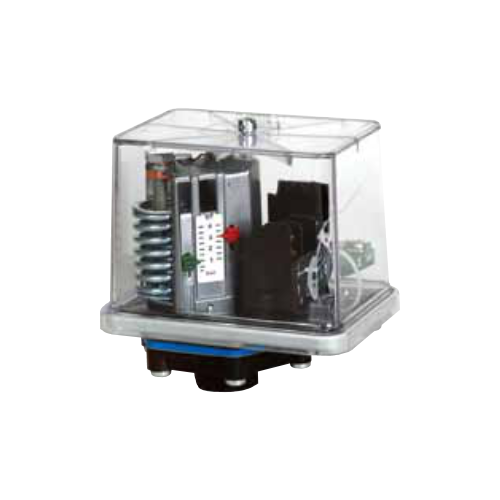

The TIVAL Pressure switch with Perbunan diaphragm combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 1 ... 16, the lower switching point is adjustable from 0.4 ... 15. Connection: G 3/8" polyamide - robust design in matching material variant. Application range: demineralized water, oil & air - with proven long-term stability. max. operating pressure: 20 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 1 ... 16 |
| Lower switching point adjustable (bar) | 0,4 ... 15 |
| small pressure difference (bar) | 0,6 1 |
| Max. Operating pressure (bar) | 20 |
| Max. Test pressure (bar) | 24 |
| Factory setting (bar) | 4 / 12 |
| Pressure connection | G 3/8" polyamide |
| Model range - Pressure switch | FF 4 / DAY |
