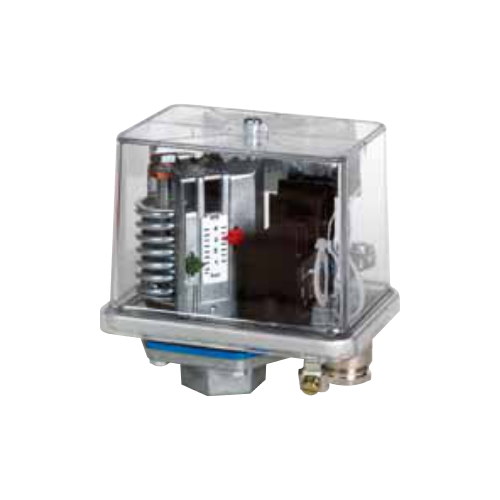

TIVAL Pressure switch FF 4-16 AB DAH
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-16 AB DAH ATEX pressure switch 1 - 16 bar - Mining (Ex ia IMb) | Art. 1030136
The TIVAL ATEX pressure switch is ATEX-certified in accordance with EN 60079 and offers maximum safety for explosive atmospheres. The upper switching point is adjustable from 1 ... 16, the lower switching point can be set from 0.4 ... 15. Connection: G 3/8" Silumin - robust design in matching material variant. Application area: Mining & explosive atmospheres - with full conformity documentation. max. operating pressure: 36 bar, medium temperature: up to +70°C. Standards & approvals: ATEX EN 60079, II 2G Ex ia IIC T6 Gb. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 1 ... 16 |
| Lower switching point adjustable (bar) | 0,4 ... 15 |
| small pressure difference (bar) | 0,6 1 |
| Max. Operating pressure (bar) | 36 |
| Max. Test pressure (bar) | 48 |
| Factory setting (bar) | 4 / 12 |
| Pressure connection | G 3/8" zinc |
| Model range - Pressure switch | FF 4 / ATEX |
