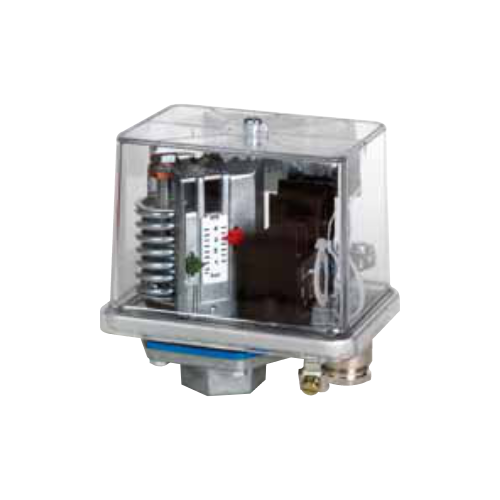

TIVAL Pressure switch FF 4-8 AB DAH 0,50- 8 bar 3/8" zinc
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-8 AB DAH ATEX pressure switch 0.50 - 8 bar - Mining (Ex ia IMb) | Art. 1030135
The TIVAL ATEX pressure switch is ATEX-certified in accordance with EN 60079 and offers maximum safety for explosive atmospheres. The upper switching point is adjustable from 0.5 ... 8, the lower switching point from 0.2 ... 7.5. Connection: G 3/8" Silumin - robust design in matching material variant. Application range: Mining & explosive atmospheres - with full conformity documentation. max. operating pressure: 30 bar, medium temperature: up to +70°C. Standards & approvals: ATEX EN 60079, II 2G Ex ia IIC T6 Gb. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 0,5 ... 8 |
| Lower switching point adjustable (bar) | 0,2 ... 7,5 |
| small pressure difference (bar) | 0,3 0,5 |
| Max. Operating pressure (bar) | 30 |
| Max. Test pressure (bar) | 40 |
| Factory setting (bar) | 2 / 6 |
| Pressure connection | G 3/8" zinc |
| Model range - Pressure switch | FF 4 / ATEX |
