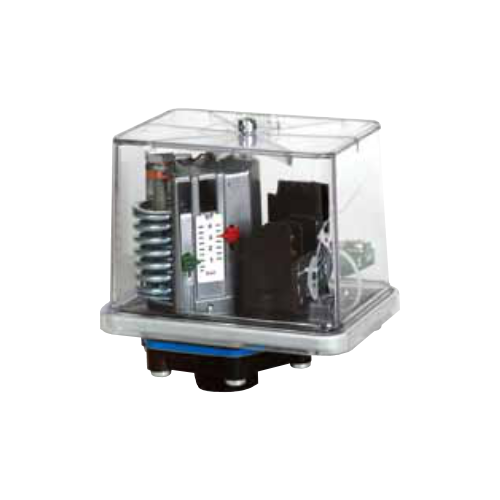

TIVAL Pressure switch FF 4-8 DAY 0,5 - 8 bar 3/8" polyamide
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-8 DAY pressure switch 0.5 - 8 bar - polyamide, for deionized water | Art. 1010084
The TIVAL Pressure switch with Perbunan diaphragm combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 0.5 ... 8, the lower switching point is adjustable from 0.2 ... 7.5. Connection: G 3/8" polyamide - robust design in matching material variant. Application range: demineralized water, oil & air - with proven long-term stability. max. operating pressure: 12 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 0,5 ... 8 |
| Lower switching point adjustable (bar) | 0,2 ... 7,5 |
| small pressure difference (bar) | 0,3 0,5 |
| Max. Operating pressure (bar) | 12 |
| Max. Test pressure (bar) | 16 |
| Factory setting (bar) | 2 / 6 |
| Pressure connection | G 3/8" polyamide |
| Model range - Pressure switch | FF 4 / DAY |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[1010078] TIVAL Pressure switch FF 4-8 DAH 0,5 - 8 bar 3/8" silumin](/web/image/product.template/149298/image_128/%5B1010078%5D%20TIVAL%20Pressure%20switch%20FF%204-8%20DAH%200%2C5%20-%208%20bar%203-8%22%20silumin?unique=d4441e6)
|
127.57 € | ||

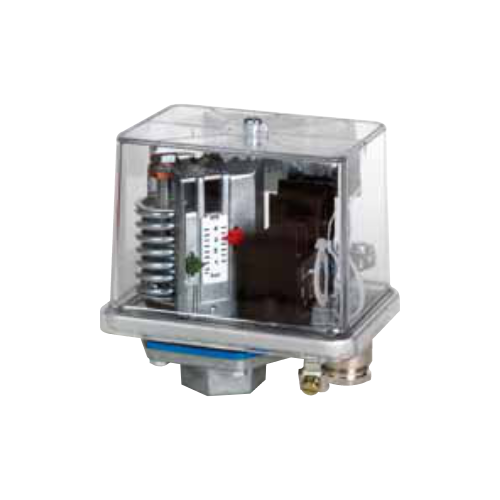

![[1030135] TIVAL Pressure switch FF 4-8 AB DAH 0,50- 8 bar 3/8" zinc](/web/image/product.template/149322/image_128/%5B1030135%5D%20TIVAL%20Pressure%20switch%20FF%204-8%20AB%20DAH%200%2C50-%208%20bar%203-8%22%20zinc?unique=d4441e6)
|
326.06 € | ||

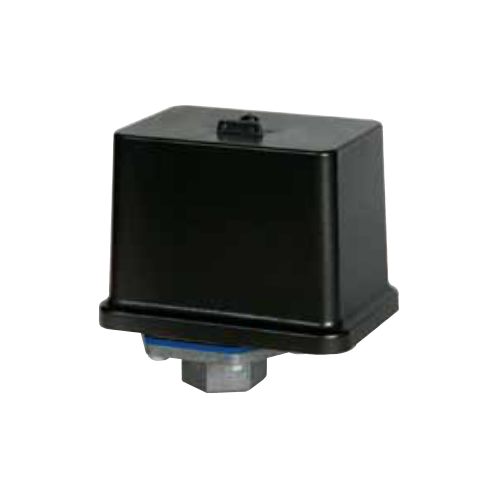

![[1030144] TIVAL Pressure switch FF 4-8 AC DAH 0,5 - 8 bar 3/8" silumin](/web/image/product.template/149323/image_128/%5B1030144%5D%20TIVAL%20Pressure%20switch%20FF%204-8%20AC%20DAH%200%2C5%20-%208%20bar%203-8%22%20silumin?unique=d4441e6)
|
381.75 € | ||

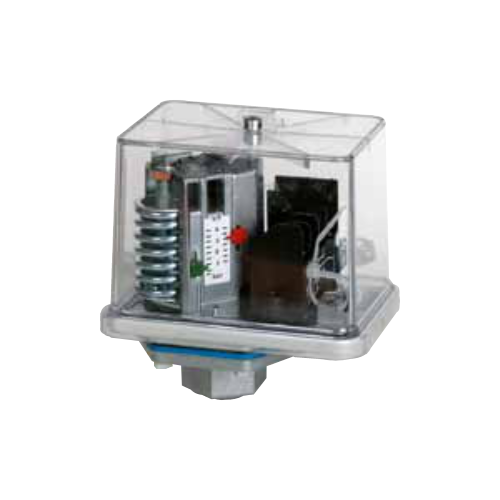

![[1010096] TIVAL Pressure switch FF 4-8 DAH G 0,5 - 8 bar 3/8" silumin, gold-plated. Contacts](/web/image/product.template/149350/image_128/%5B1010096%5D%20TIVAL%20Pressure%20switch%20FF%204-8%20DAH%20G%200%2C5%20-%208%20bar%203-8%22%20silumin%2C%20gold-plated.%20Contacts?unique=d4441e6)
|
156.37 € | ||

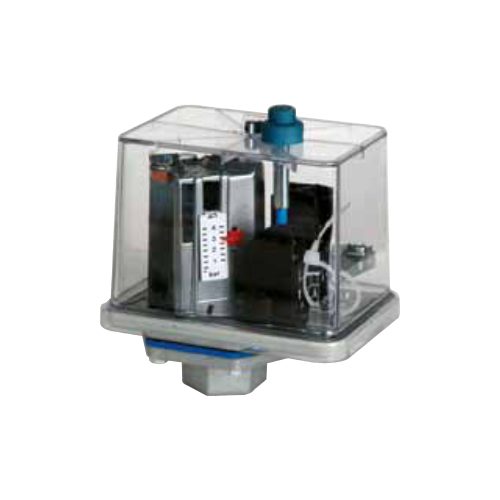

![[1010069] TIVAL Pressure switch FF 4-8 DRH 0,5 - 8 bar 3/8" silumin, Handreset max.](/web/image/product.template/149356/image_128/%5B1010069%5D%20TIVAL%20Pressure%20switch%20FF%204-8%20DRH%200%2C5%20-%208%20bar%203-8%22%20silumin%2C%20Handreset%20max.?unique=d4441e6)
|
158.39 € | ||

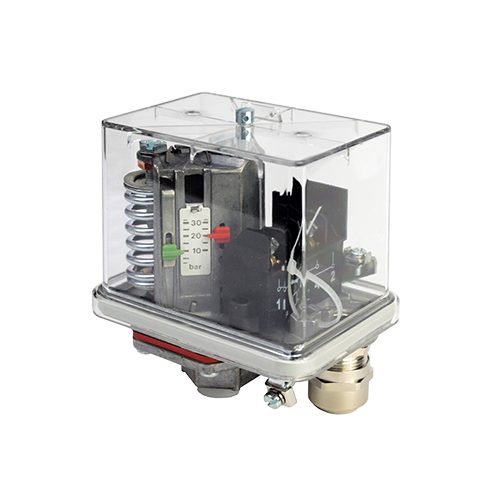

![[1010031] TIVAL Pressure Switch FF 4-8 GL 0.5 - 8 bar DAH 3/8" Silumin](/web/image/product.template/149381/image_128/%5B1010031%5D%20TIVAL%20Pressure%20Switch%20FF%204-8%20GL%200.5%20-%208%20bar%20DAH%203-8%22%20Silumin?unique=d4441e6)
|
166.12 € | ||
Accessory Products
| Product | Price | ||
|---|---|---|---|
![[1011001] TIVAL Cover for Pressure switch FF 4](/web/image/product.template/149371/image_128/%5B1011001%5D%20TIVAL%20Cover%20for%20Pressure%20switch%20FF%204?unique=d4441e6)
|
29.87 € | ||
![[1011002] TIVAL Throttle for FF4-2 up to 32 bar](/web/image/product.template/149318/image_128/%5B1011002%5D%20TIVAL%20Throttle%20for%20FF4-2%20up%20to%2032%20bar?unique=d4441e6)
|
5.24 € | ||
![[1011003] TIVAL Throttle for series FF4-60 up to 250](/web/image/product.template/149367/image_128/%5B1011003%5D%20TIVAL%20Throttle%20for%20series%20FF4-60%20up%20to%20250?unique=d4441e6)
|
10.35 € | ||

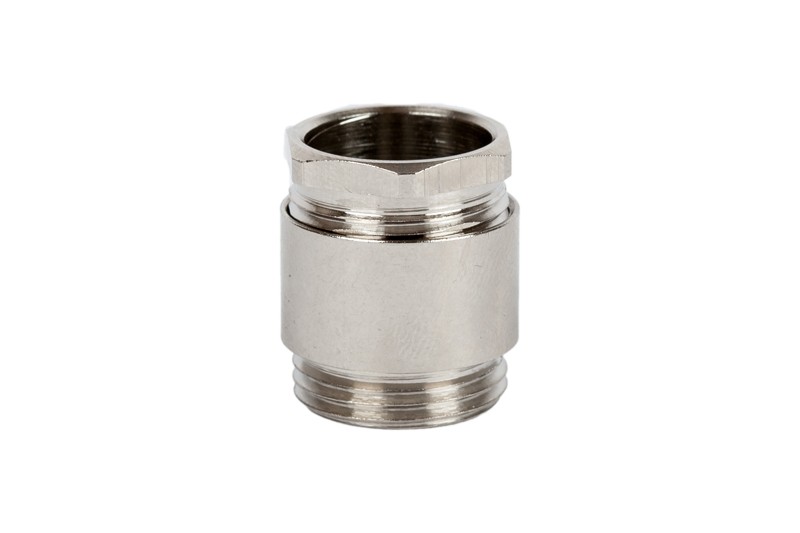

![[1011004] TIVAL Fitting FF 4 490 M 20 13](/web/image/product.template/149369/image_128/%5B1011004%5D%20TIVAL%20Fitting%20FF%204%20490%20M%2020%2013?unique=d4441e6)
|
