TIVAL Pressure switch FF 4-16 VdS DAI 1 - 16 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology

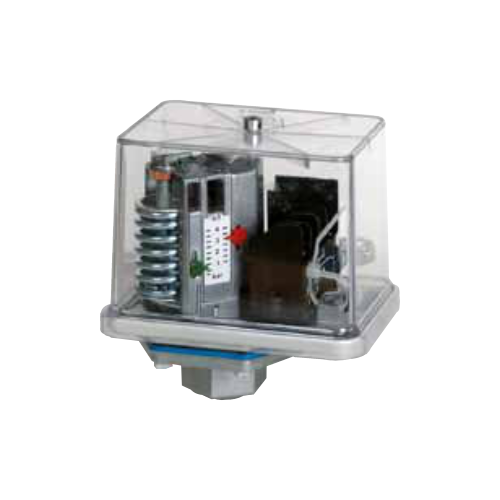

FF4-16 VdS DAI pressure switch for fire protection - 1 - 16 bar | Art. 1020067
The TIVAL Fire protection pressure switch is VdS-certified for professional fire alarm systems and fire monitoring systems. The upper switching point is adjustable from 1 ... 16, the lower switching point from 0.5 ... 15. Connection: G 1/2" Silumin - robust design in matching material variant. Application range: Fire detection - with proven long-term stability. max. operating pressure: 48 bar, medium temperature: up to +70°C. Standards & approvals: VdS approval. All settings are clearly visible via the transparent polycarbonate cover. Chokes and screw fittings are available as accessories.
| Upper switching point adjustable (bar) | 1 ... 16 |
| Lower switching point adjustable (bar) | 0,5 ... 15 |
| small pressure difference (bar) | 0,8 ... 1,5 |
| Max. Operating pressure (bar) | 48 |
| Max. Test pressure (bar) | 48 |
| Factory setting (bar) | 11 / 12 |
| Pressure connection | G1/2" |
| Model range - Pressure switch | FF4 / VdS |
