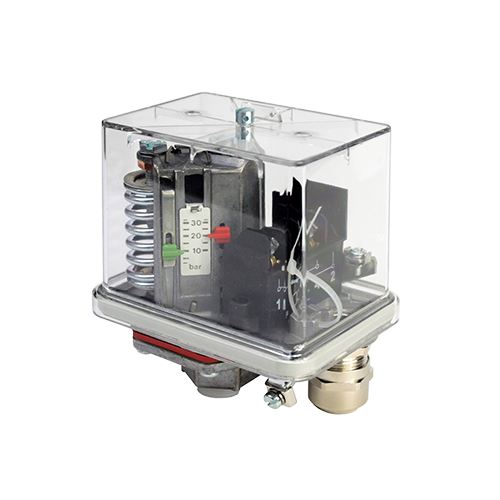

TIVAL Pressure switch FF 4-2 GL DAH 0.11 - 2 bar 3/8" Silumin
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-2 GL DAH DNV pressure switch 0.11 - 2 bar - for shipbuilding & offshore | Art. 1010122
The TIVAL Marine switch is DNV-certified for ships and offshore applications with the highest quality requirements. The upper switching point is adjustable from 0.11 ... 2, the lower switching point is adjustable from 0.04 ... 1.89. Connection: G 3/8" Silumin - robust design in matching material variant. Application: Shipbuilding & offshore - certified for maritime requirements. max. operating pressure: 20 bar, medium temperature: up to +70°C. Standards & approvals: DNV TAA00002G6, VDE 0660, IEC 337-1. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 0,11 ... 2 |
| Lower switching point adjustable (bar) | 0,04 ... 1,89 |
| small pressure difference (bar) | 0,07 0,11 |
| Max. Operating pressure (bar) | 20 |
| Max. Test pressure (bar) | 40 |
| Factory setting (bar) | 0,5 / 1,5 |
| Pressure connection | G 3/8" Silumin |
| Model range - Pressure switch | FF 4 / GL |
