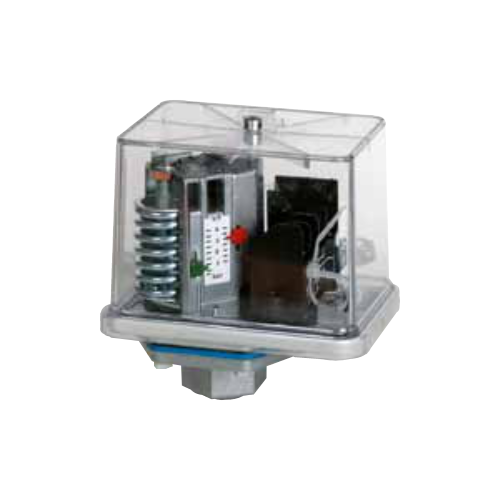

TIVAL Pressure switch FF 4-2 DAH G 0,11 - 2 bar 3/8" silumin, gold-plated. Contacts
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-2 DAH G pressure switch 0.11 - 2 bar - gold-plated contacts | Art. 1010109
The TIVAL Pressure switch with Perbunan diaphragm with gold-plated contacts combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 0.11 ... 2, the lower switching point is adjustable from 0.04 ... 1.89. Connection: G 3/8" Silumin - robust design in matching material variant. Application range: Oil, water & air - with proven long-term stability. max. operating pressure: 20 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 0,11 ... 2 |
| Lower switching point adjustable (bar) | 0,04 ... 1,89 |
| small pressure difference (bar) | 0,07 0,11 |
| Max. Operating pressure (bar) | 20 |
| Max. Test pressure (bar) | 40 |
| Factory setting (bar) | 0,5 / 1,5 |
| Pressure connection | G 3/8" Silumin, gold-plated contacts |
| Model range - Pressure switch | FF 4 / DAH(G) |
