RIEGLER Flow valve, ET top, Aluminium, Ball seat valve
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

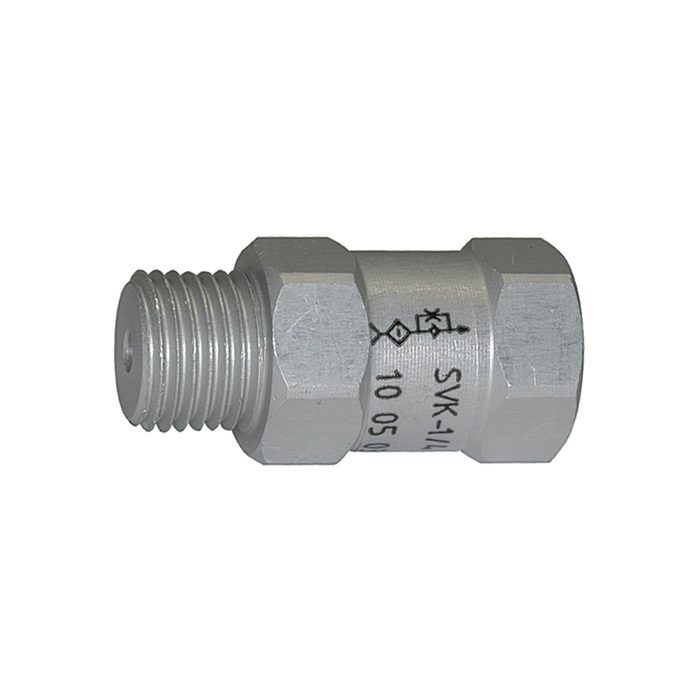

RIEGLER Flow valve made of aluminum, for vacuum technology - type SVK 1426
The RIEGLER flow valve, male o., aluminum, ball seat valve. pu = -0.3bar l/min 2.9 generates or uses vacuum for handling and automation tasks. The housing is made of aluminum. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Housing | Aluminum |
| Length | 26 mm |
| Type of construction | Ball seat valve (brass ball seat) |
| Thread 1 | G 1/4 AG |
| Thread 2 | G 1/4 FEMALE THREAD |
| Required suction power pu = -0.3 | 2.9 l/min |
| Required suction power pu = -0.6 | 3.4 l/min |
| Max. flow rate with blow-off | 340 l/min |
| Weight | 17.5 g |
