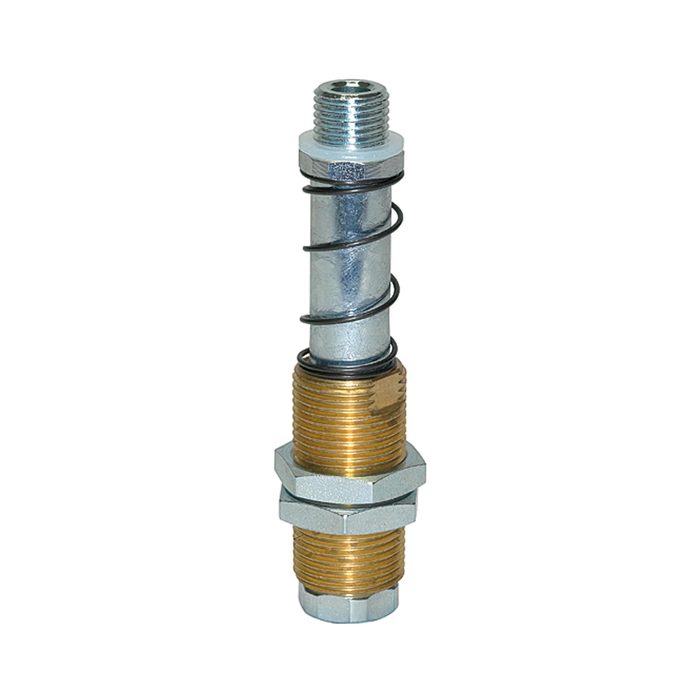

RIEGLER Spring plunger, Suction connection G 1/4 ET, Spring travel 75 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spring plungers for vacuum technology - type FS 1418-75
The RIEGLER spring plunger, suction connection G 1/4 AG, spring travel 75.0 mm generates or uses vacuum for handling and automation tasks. The operating temperature is between 0 °C and 80 °C. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Operating temperature min. | 0 °C |
| Operating temperature max. | 80 °C |
| Length | 154 mm |
| Vacuum connection | G 1/8 FEMALE THREAD |
| Suction cup connection | G 1/4 AG |
| Spring travel | 75 mm |
| Spring rate | 0.262 N/mm |
| Spring preload | 5.38 N |
| Spring force | 15.2 N |
| Vertical load | 2400 N |
| Horizontal load | 340 N |
| Weight | 190 g |
