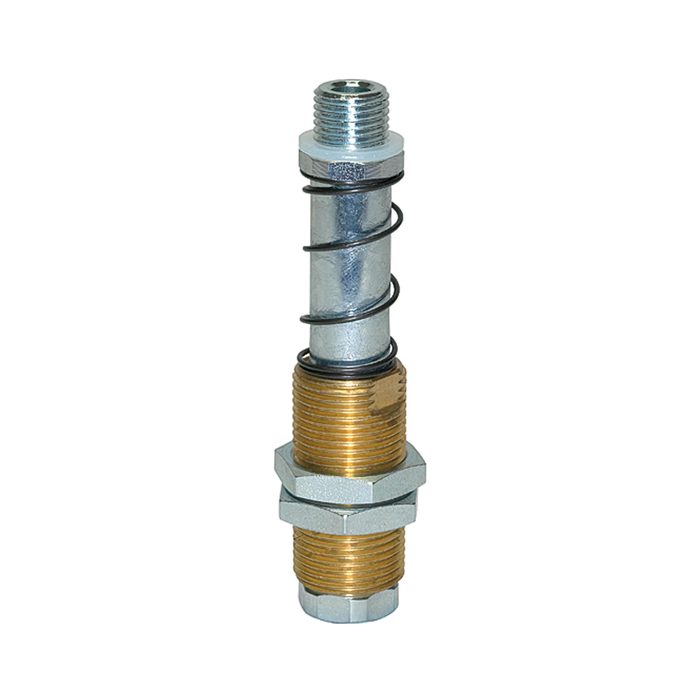

RIEGLER Spring plunger, Suction connection G 1/8 ET, Spring travel 50 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spring plungers for vacuum technology - type FS 1818-50
The RIEGLER spring plunger, suction connection G 1/8 AG, spring travel 50.0 generates or uses vacuum for handling and automation tasks. The operating temperature is between 0 °C and 80 °C. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Operating temperature min. | 0 °C |
| Operating temperature max. | 80 °C |
| Length | 124 mm |
| Vacuum connection | G 1/8 FEMALE THREAD |
| Suction cup connection | G 1/8 AG |
| Spring travel | 50 mm |
| Spring rate | 0.097 N/mm |
| Spring preload | 2.92 N |
| Spring force | 5.34 N |
| Vertical load | 3700 N |
| Horizontal load | 173 N |
| Weight | 110 g |
