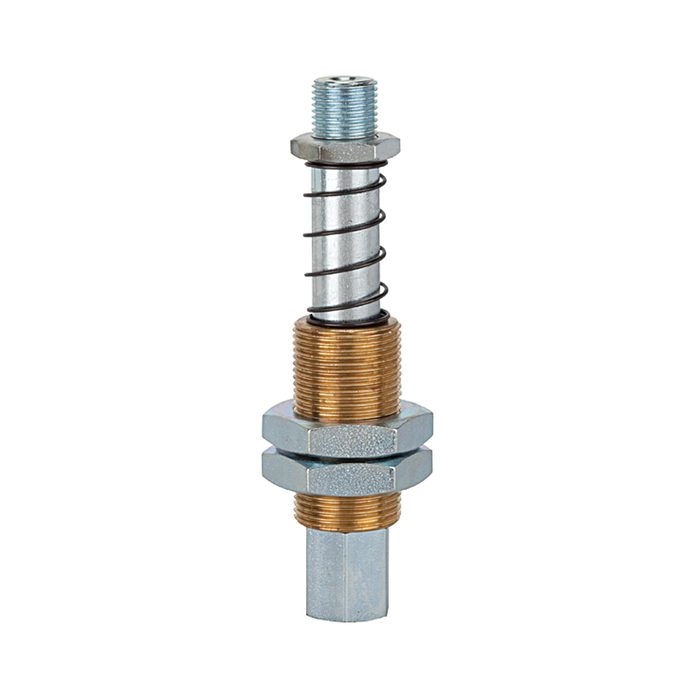

RIEGLER Spring plunger, Suction connection M5 IT, Spring travel 20 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spring plungers for vacuum technology - type FS 55-20
The RIEGLER spring plunger, suction/vacuum connection M5 female thread, spring travel 20.0 mm generates or uses vacuum for handling and automation tasks. The operating temperature is between 0 °C and 80 °C. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Operating temperature min. | 0 °C |
| Operating temperature max. | 80 °C |
| Length | 59.2 mm |
| Vacuum connection | M5 IG |
| Suction cup connection | M5 IG |
| Spring travel | 20 mm |
| Spring rate | 0.209 N/mm |
| Spring preload | 1.78 N |
| Spring force | 3.87 N |
| Vertical load | 1500 N |
| Horizontal load | 63 N |
| Weight | 25 g |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[108542] RIEGLER Spring plunger, Suction connection G 1/4 ET, Spring travel 25 mm](/web/image/product.template/192439/image_128/%5B108542%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20G%201-4%20ET%2C%20Spring%20travel%2025%20mm?unique=d4441e6)
|
69.76 € | ||
![[108543] RIEGLER Spring plunger, Suction connection G 1/4 ET, Spring travel 50 mm](/web/image/product.template/192440/image_128/%5B108543%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20G%201-4%20ET%2C%20Spring%20travel%2050%20mm?unique=d4441e6)
|
70.45 € | ||

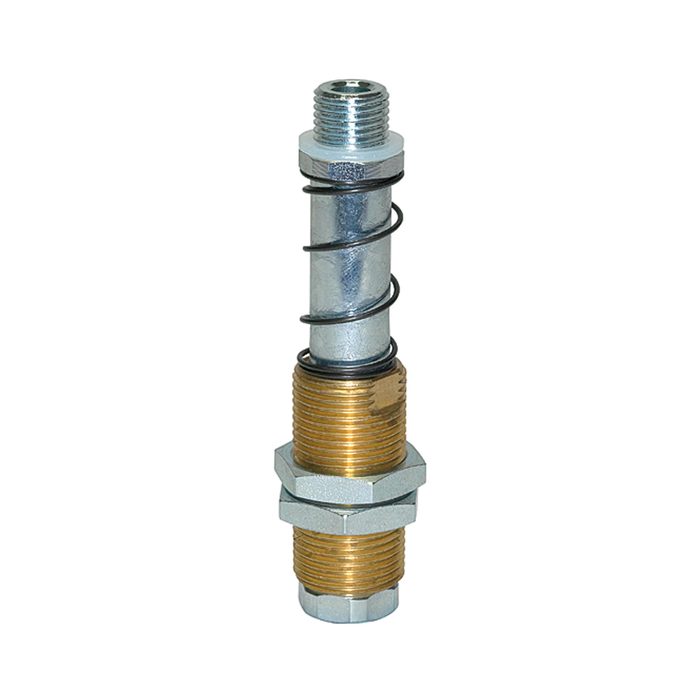

![[108544] RIEGLER Spring plunger, Suction connection G 1/4 ET, Spring travel 75 mm](/web/image/product.template/192441/image_128/%5B108544%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20G%201-4%20ET%2C%20Spring%20travel%2075%20mm?unique=d4441e6)
|
