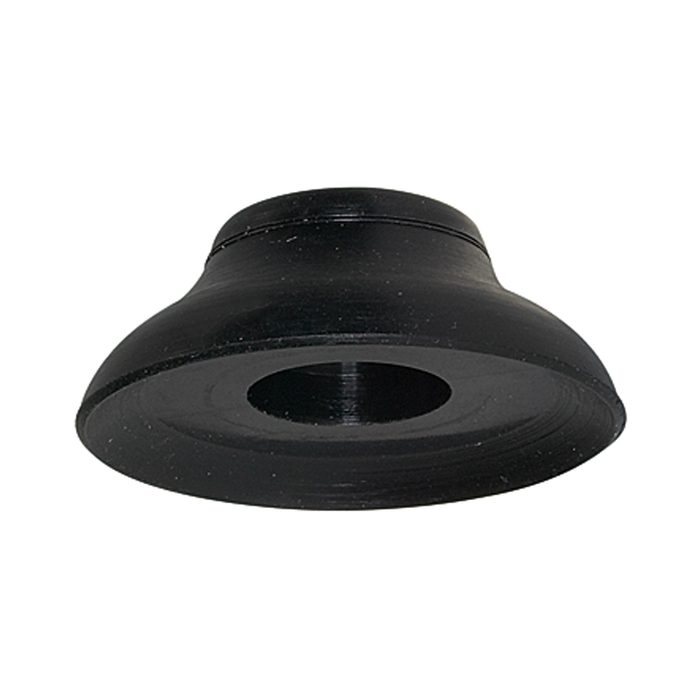

RIEGLER Flat suction cup, round, Material NBR, »PFG« ø: 10 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Round flat suction cup for vacuum technology - type PFG 1010-1
The RIEGLER flat suction cup round, PFG ø:10 mm, NBR lifts and transports workpieces safely by vacuum. Suction force 4 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 10 mm |
| Suitable connection nipple IG | M5 / G 1/8 |
| Suitable connection nipple AG | M5 / G 1/8 |
| Overall height with nipple IG | 17.5 / 23.5 mm |
| Overall height with nipple AG | 12.5 / 12.5 mm |
| Suction power | 4 N |
| Volume | 0.07 cm³ |
| Workpiece radius convex min. | 13 mm |
| Recommended hose Ø | 2 mm |
