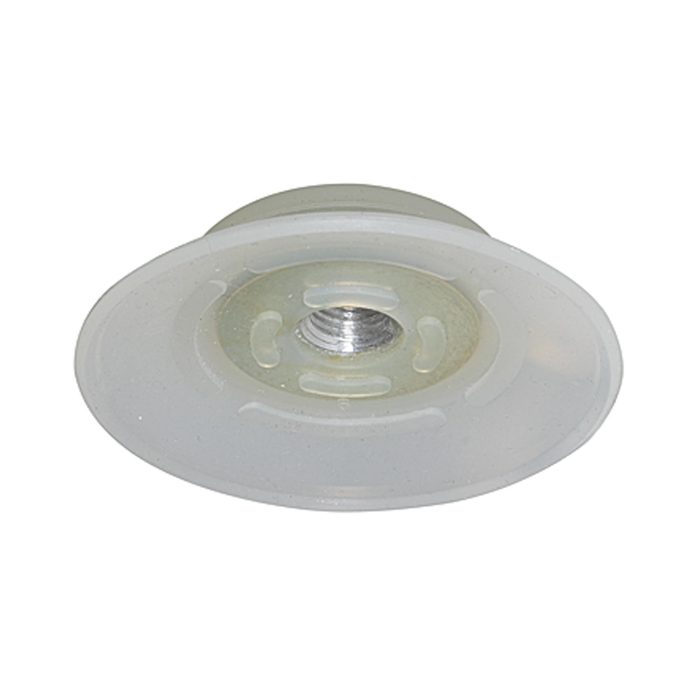

RIEGLER Flat suction cup, round, Silicone material, »PFG«
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Round flat suction cup for vacuum technology - type PFG 1010-2
The RIEGLER flat suction cup round, PFG ø: 10 mm, silicone lifts and transports workpieces safely by vacuum. Suction force 4 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 10 mm |
| Suitable connection nipple IG | M5 / G 1/8 |
| Suitable connection nipple AG | M5 / G 1/8 |
| Overall height with nipple IG | 17.5 / 23.5 mm |
| Overall height with nipple AG | 12.5 / 12.5 mm |
| Suction power | 4 N |
| Volume | 0.07 cm³ |
| Workpiece radius convex min. | 13 mm |
| Recommended hose Ø | 2 mm |
Accessory Products
| Product | Price | ||
|---|---|---|---|

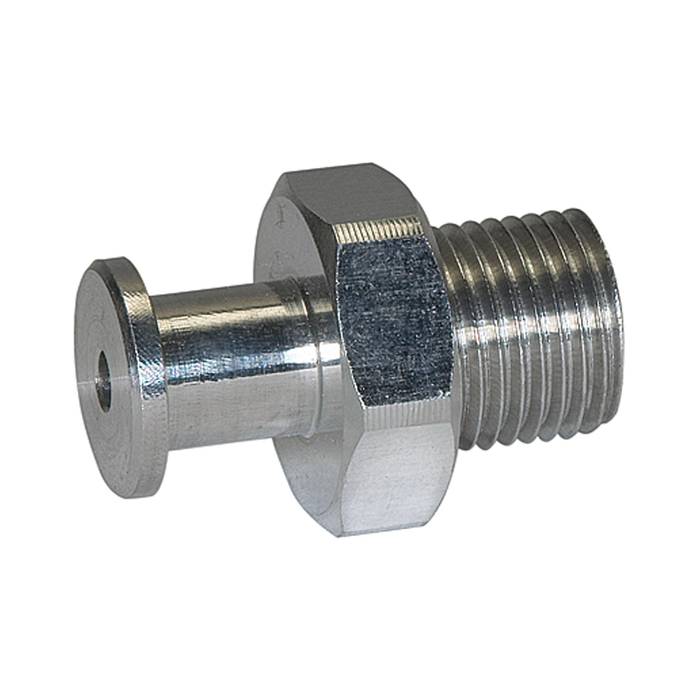

![[108460] RIEGLER Connection nipple for flat suction cup round »PFG«, M5 ET, Ø 5-10](/web/image/product.template/192357/image_128/%5B108460%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20M5%20ET%2C%20%C3%98%205-10?unique=d4441e6)
|
4.12 € | ||
![[108461] RIEGLER Connection nipple for flat suction cup round »PFG«, G1/8 ET, Ø 10](/web/image/product.template/192358/image_128/%5B108461%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20G1-8%20ET%2C%20%C3%98%2010?unique=d4441e6)
|
4.09 € | ||
![[108467] RIEGLER Connection nipple for flat suction cup round »PFG«, M5 IT Ø5-10](/web/image/product.template/192364/image_128/%5B108467%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20M5%20IT%20%C3%985-10?unique=d4441e6)
|
4.09 € | ||

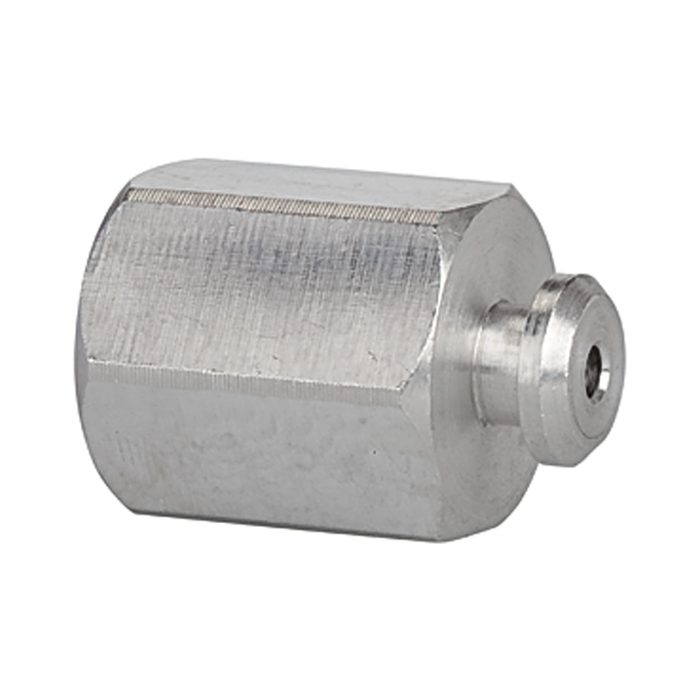

![[108468] RIEGLER Connection nipple for flat suction cup round »PFG«, G 1/8 IT Ø10](/web/image/product.template/192365/image_128/%5B108468%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20G%201-8%20IT%20%C3%9810?unique=d4441e6)
|
4.09 € | ||
